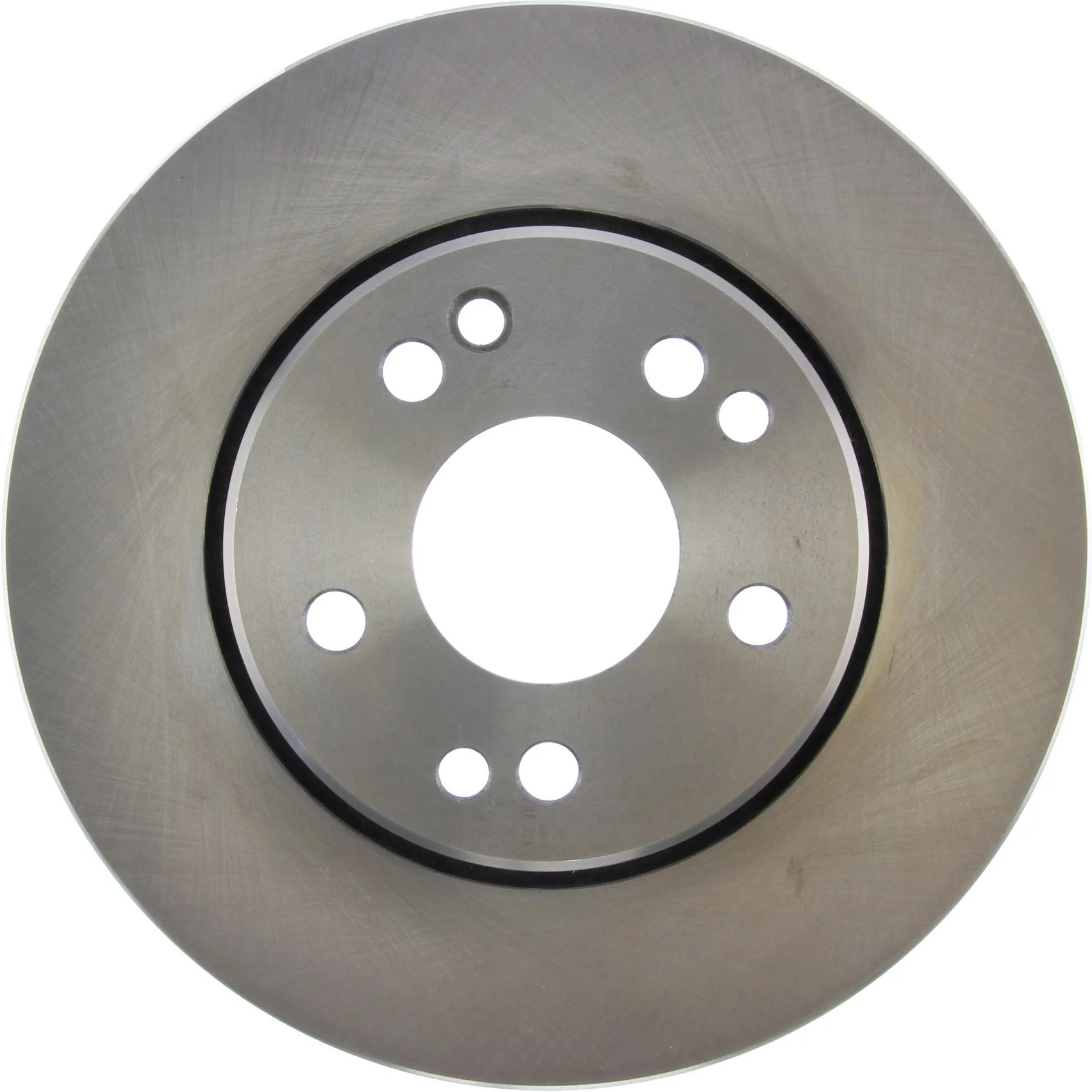

Centric 121.35013 Disc Brake Rotor - Front
Centric C-TEK Rotor for Mercedes-Benz Front Brakes
The Centric C-TEK Standard Disc Brake Rotor, part number 121.35013, is built for front brake service on select Mercedes-Benz applications. It combines a vented design with a smooth surface and OE-style dimensions to support consistent braking performance and dependable wear life.
Fits 1990-1992 Mercedes-Benz 300E, front. Fits 1990-1992 Mercedes-Benz 300TE, front.
Key Features
- Centric C-TEK Standard Disc Brake Rotors line for everyday brake service
- Vented rotor design for front axle heat management
- Smooth surface type for a clean braking contact area
- Outside diameter: 11.181 in. / 284.000 mm
- Nominal thickness: 0.866 in. / 22.000 mm
- Discard thickness: 0.764 in. / 19.400 mm
- Center hole diameter: 2.638 in. / 67.000 mm
- 5-lug pattern with 112.000 mm bolt circle diameter
- Floating disc mounting with vented hat notes
- ABS tone ring and bearings not included
Product Details
Centric designed the C-TEK Standard Disc Brake Rotors line to deliver solid performance, service life, and value across a wide range of applications. This 121.35013 rotor follows the dimensions and mounting layout needed for select Mercedes-Benz 300E and 300TE front brake setups, making it a direct-fit choice for routine brake repair and rotor replacement. The vented construction helps manage heat during repeated stops, while the smooth friction surface supports even pad contact.
This part cross-references Raybestos Brakes 96231R for the same application.
Common Reasons to Replace
- Brake pulsation or steering wheel shake during stops
- Rotor scoring, grooves, or uneven wear on the braking surface
- Thickness below service limits on the front rotor
- Noise caused by worn or heat-affected rotor surfaces
- Reduced braking consistency on Mercedes-Benz 300E or 300TE front brakes
Installation Notes
Verify rotor thickness, center bore, bolt circle, and overall height before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect brake pads and caliper components at the same time. Because this rotor uses a vented design and floating disc mounting, proper alignment during installation helps maintain smooth operation on 1990-1992 Mercedes-Benz 300E and 300TE front brake systems.
Quality Assurance
Centric backs the C-TEK Standard Disc Brake Rotors line with a focus on performance, service life, and value for everyday brake repair. Part number 121.35013 is built to meet the dimensional requirements of the listed Mercedes-Benz front applications.
