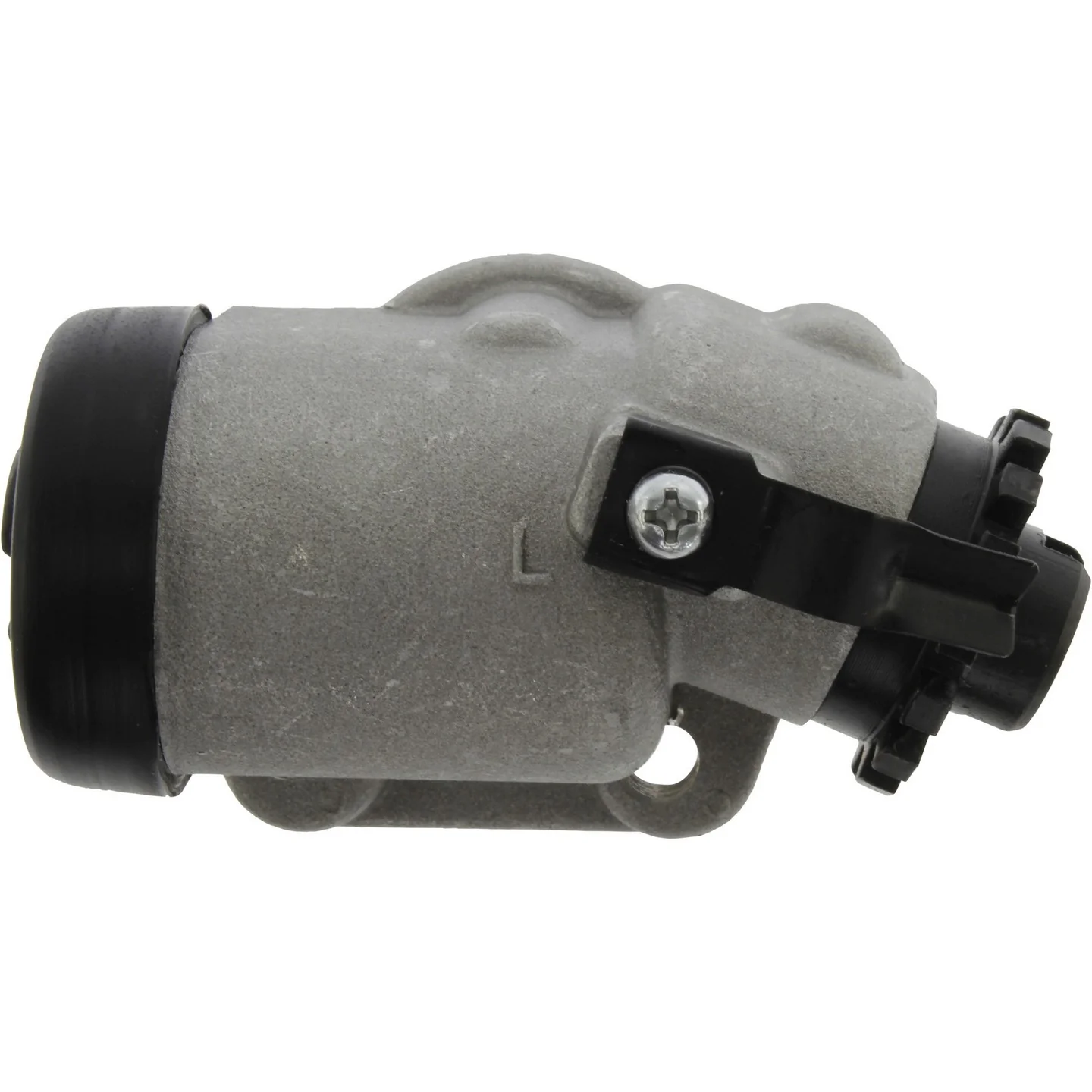

Centric 134.44736 Drum Brake Wheel Cylinder - Front Left or Front Right
Centric Premium Wheel Cylinder for Toyota Pickup
The Centric Premium Wheel Cylinders line is built for brake hydraulic service with coverage that includes wheel cylinders, master cylinders, brake hoses, repair kits, and remanufactured power boosters. This Centric drum brake wheel cylinder, part number 134.44736, is a left-side replacement for select Toyota Pickup front brake applications.
- Drum brake wheel cylinder for front left placement
- Bolted attachment with 3-bolt mounting method
- 1.125 in. bore diameter for the specified brake setup
- Bleeder screw included
- 2-piston design with slotted pistons
- Bubble flare inlet connection with 10 mm thread diameter and 1.0 thread pitch
- Notes list a piston with star wheel adjuster
Application Details
Centric 134.44736 is specified for 1972 Toyota Pickup front left, 1973 Toyota Pickup front left, and 1974 Toyota Pickup front left. It is listed for Toyota Pickup 1/2 Ton front brake service and matches the left-side drum brake hydraulic layout shown in the fitment data. If you are searching for a Toyota Pickup front left wheel cylinder, Toyota Pickup drum brake wheel cylinder, or Centric 134.44736 for 1972-1974 Toyota Pickup, this part matches those vehicle-specific applications.
This part cross-references Raybestos Brakes WC37743 for the same application.
What It Helps Address
- Brake fluid leakage at the wheel cylinder
- Uneven rear or front drum brake hydraulic pressure at the wheel end
- Soft or inconsistent brake pedal feel caused by worn hydraulic seals
- Brake drag or poor shoe actuation from a worn cylinder assembly
- Corrosion or pitting inside the cylinder bore
Installation Notes and Tips
Verify the 1.125 in. bore, 3-bolt mounting pattern, bubble flare inlet, and left-side position before installation. Inspect the brake line fitting, bleeder screw threads, and drum brake hardware for wear or contamination, and confirm the star wheel adjuster arrangement matches the vehicle’s original setup. After installation, bleed the brake system thoroughly and check for leaks at the inlet and bleeder screw.
Quality Assurance
Centric’s brake hydraulic program is organized as a broad hydraulic replacement line covering wheel cylinders and related brake hydraulic components. Part number 134.44736 is built to the listed specifications for the confirmed Toyota Pickup applications.
