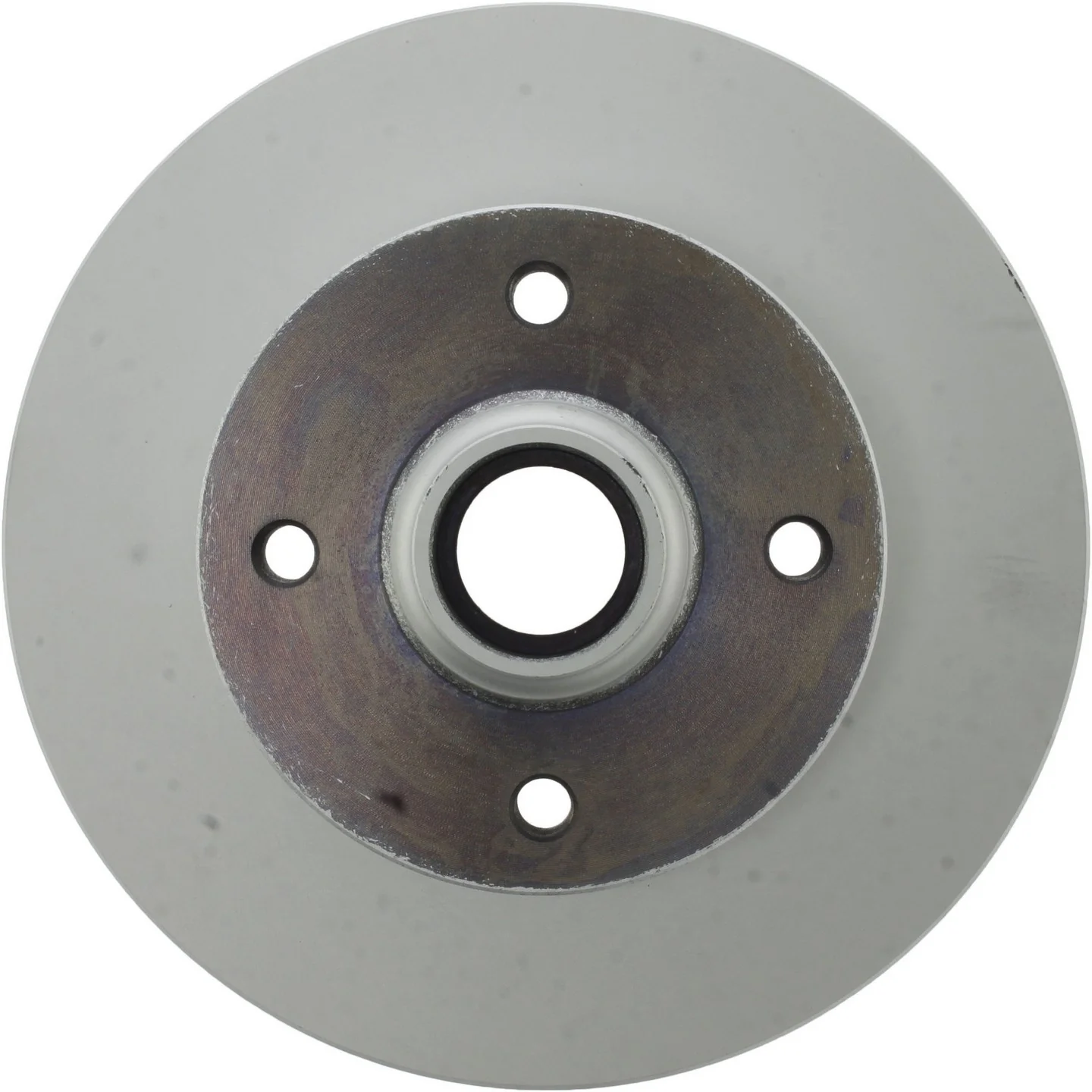

Centric 320.33022H Disc Brake Rotor - Rear
Centric GCX Rear Brake Rotor Overview
The Centric GCX Elemental Protection Disc Brake Rotor is built for rear brake service on select Volkswagen applications, including Volkswagen Cabrio, Golf, Jetta, Passat, and Corrado models. Part number 320.33022H combines a fully coated finish with high carbon metallurgy to support OE-style braking performance and corrosion resistance.
Centric’s GCX line uses application-specific coating patterns and rotor metallurgy to match the friction characteristics and OEM material profile for the vehicle. This helps deliver consistent brake feel while keeping exposed surfaces protected from rust.
Key Features
- Part number 320.33022H
- Rear disc brake rotor for select Volkswagen vehicles
- Fully coated disc finish with coated hat surface
- High carbon content metallurgy for OE-matched material profile
- Smooth, solid rotor design
- Outside diameter: 226.0 mm (8.898 in.)
- Nominal thickness: 10.0 mm (0.394 in.)
- Discard thickness: 8.0 mm (0.315 in.)
- 4-lug pattern with 100 mm bolt circle
- Hub-and-rotor mounting style
Product Details
Centric GCX Elemental Protection Disc Brake Rotors are engineered to match OE performance while adding full-surface protection on non-mating areas. The RS200 coating helps resist rust and corrosion on the hat and outer surfaces, which is especially useful for rear brake rotor replacement on older Volkswagen platforms where corrosion can affect appearance and service life. The high carbon alloy construction supports the OEM-style metallurgy used in the original brake system, and the smooth solid rotor design matches the rear brake configuration listed for these applications. Part number 320.33022H is a direct-fit rear rotor for select Volkswagen Cabrio, Golf, Jetta, Passat, and Corrado models.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Rotor Helps Address
- Rear brake rotor rust on exposed surfaces
- Brake pulsation caused by worn rotor thickness
- Reduced braking consistency from aged rear rotors
- Corrosion-related cosmetic wear on the hat and outer surfaces
- OE replacement needs for Volkswagen rear disc brake service
Installation Notes and Fitment
Compatible with rear brake applications only. Fits 1999-2002 Volkswagen Cabrio, rear. Fits 1997-1998 Volkswagen Golf, rear, to 11/98. Fits 1998 Volkswagen Jetta, rear, up to 9/98. Fits 1994-1997 Volkswagen Jetta, rear. Fits 1985-1992 Volkswagen Jetta, rear. Fits 1995-1997 Volkswagen Passat, rear. Fits 1990-1993 Volkswagen Passat, rear. Fits 1985-1996 Volkswagen Golf, rear. Fits 1993 Volkswagen Jetta, rear, vehicles equipped with rear disc brakes. Fits 1990-1991 Volkswagen Corrado, rear.
Before installation, confirm rotor diameter, thickness, bolt pattern, and rear disc brake configuration against the vehicle’s original equipment. Clean the hub mounting surface thoroughly to help prevent runout and uneven pad contact. Replace brake pads and inspect caliper hardware, bearings, and seals as needed during service.
Quality Assurance
Centric designs the GCX line to align with OE performance targets and vehicle-specific metallurgy requirements. The application-specific coating pattern and corrosion-resistant finish are intended to support long-term service appearance and brake system reliability.
