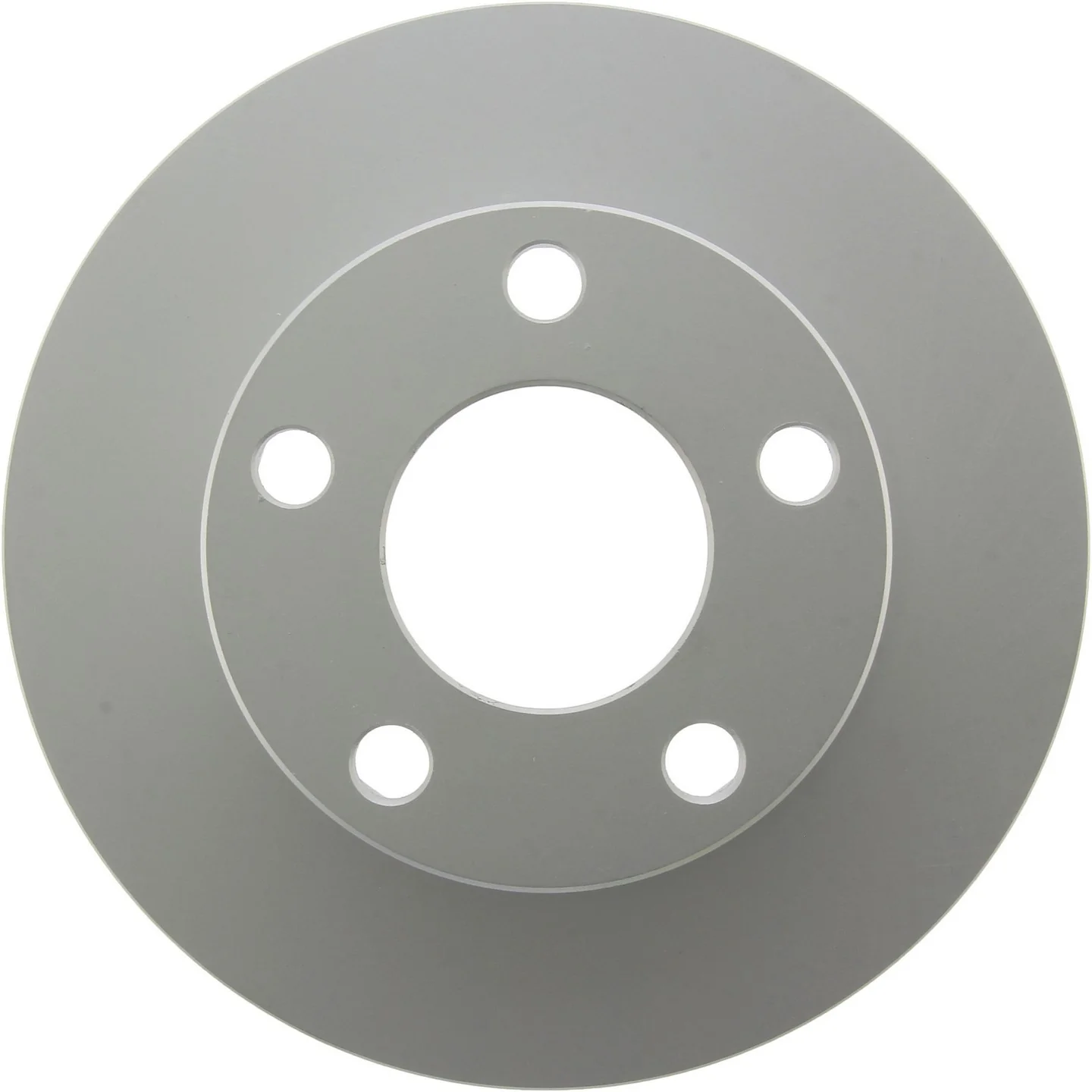

Centric 320.33047H Disc Brake Rotor - Rear
Centric GCX Rear Brake Rotor Overview
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.33047H, is a rear solid rotor built for OE-style braking performance and corrosion resistance. It is a fitment-specific option for select Audi A4 Quattro and Volkswagen Passat applications, including rear brake service on 1996-2005 models listed below.
Centric’s GCX Elemental Protection line uses a full coating on non-mating surfaces and application-specific metallurgy to match the vehicle’s original brake profile. For drivers replacing a rear rotor on an Audi A4 Quattro or Volkswagen Passat, 320.33047H is built around the dimensions and finish details that matter for fitment and long-term appearance.
Key Features
- Part number 320.33047H
- Rear disc brake rotor for select Audi A4 Quattro and Volkswagen Passat models
- Fully coated disc finish with coated hat for corrosion resistance on exposed surfaces
- Solid rotor design with smooth surface type
- High carbon content metallurgy matched to OEM-style brake requirements
- Floating disc mounting configuration
- 5-lug pattern with 112 mm bolt circle
- Outside diameter: 245 mm (9.646 in)
- Nominal thickness: 10.0 mm (0.390 in)
- Discard thickness: 8.0 mm (0.315 in)
Product Line Details
Centric GCX Elemental Protection Disc Brake Rotors are engineered with application-specific coating patterns and rotor metallurgy. The GCX line uses Centric’s RS200 finish on non-mating surfaces to help protect against rust and corrosion, while the high carbon alloy formulation is selected to align with the OEM metallurgical profile for the vehicle.
Fitment
- Fits 2002-2005 Volkswagen Passat, rear.
- Fits 1999 Volkswagen Passat, rear.
- Fits 1996-2001 Audi A4 Quattro, rear.
- Fits 2000-2001 Volkswagen Passat, rear; Fr Chassis # 3B-X-491 581 - For front caliper installation.
Common Replacement Reasons
- Rear brake pulsation from rotor wear or thickness variation
- Surface rust on the rotor hat or non-mating areas
- Brake noise caused by worn or uneven rotor surfaces
- Reduced braking consistency from rotor scoring or heat wear
- Need for OE-style rear rotor replacement on Audi A4 Quattro or Volkswagen Passat
Installation Notes
Verify rotor dimensions, hub fit, and rear axle application before installation. This rotor uses a 68 mm center hole diameter, 112 mm bolt circle, and 5 lug holes with 15.3 mm lug hole diameter. Confirm the vehicle’s chassis note for 2000-2001 Volkswagen Passat applications before ordering. Brake pads should be inspected and replaced if wear or uneven contact is present.
Quality Assurance
Centric designs GCX rotors to match OE performance targets while improving protection on exposed surfaces. The application-specific coating pattern and high carbon metallurgy are intended to support consistent brake service and long-term rotor appearance. This part number is 320.33047H.
