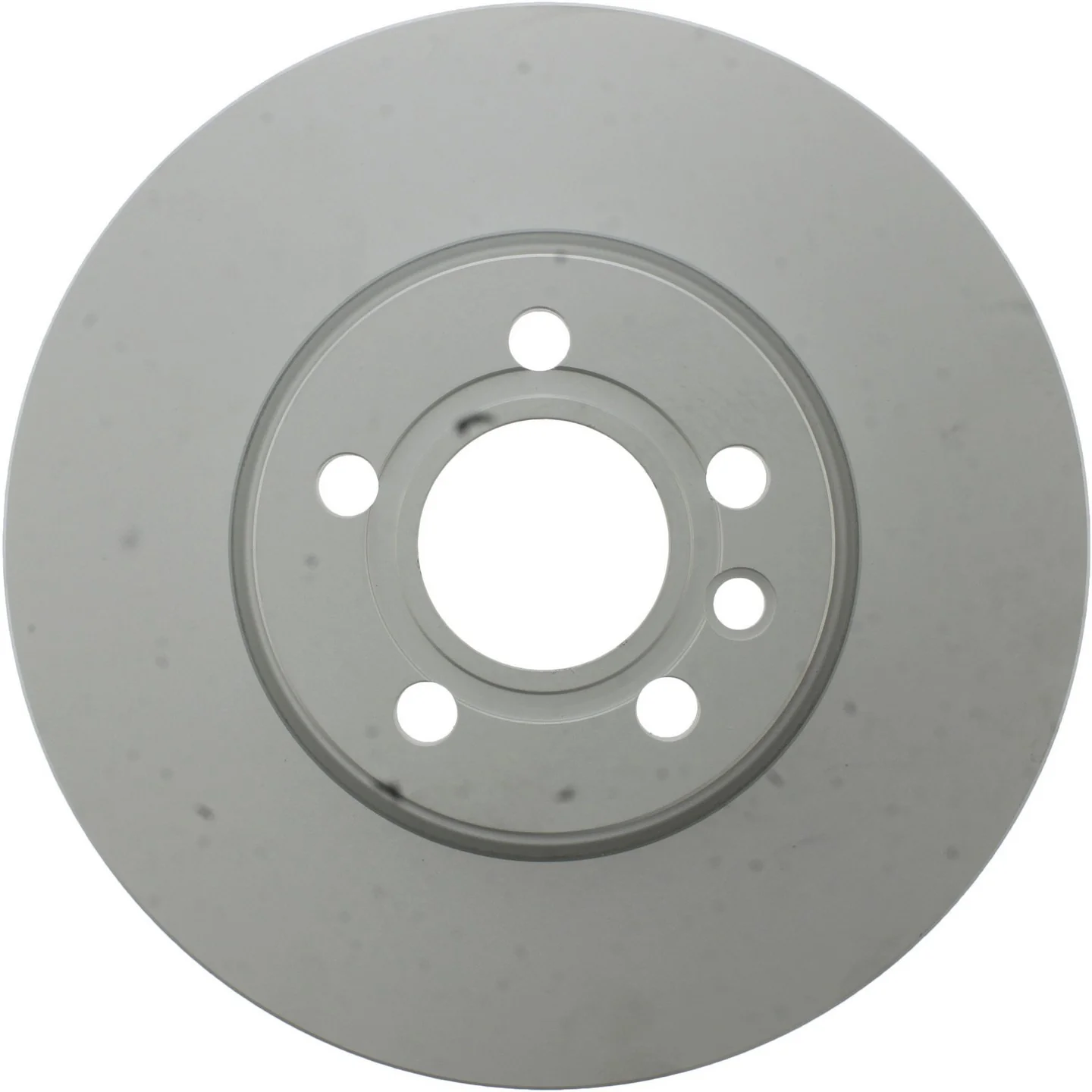

Centric 320.33074H Disc Brake Rotor - Front
Centric GCX Front Brake Rotor Overview
The Centric GCX Elemental Protection Disc Brake Rotor is built for OE-style braking performance with added resistance to rust and corrosion. Part number 320.33074H is a front vented rotor with a fully coated disc finish and coated hat surface for long-term appearance and protection.
Compatible with 2002-2008 Volkswagen Sharan front and 2001-2003 Volkswagen EuroVan front, this rotor is sized for applications that use a 313 mm front disc on the Sharan and a 312 mm front disc on the EuroVan. It is a fitment-focused replacement for drivers searching for a Volkswagen Sharan front brake rotor or Volkswagen EuroVan front disc brake rotor.
Key Features
- Part number 320.33074H
- Front disc brake rotor for select Volkswagen applications
- Fully coated disc finish with coated hat for corrosion resistance
- Vented rotor design with straight vane style
- High carbon content metallurgy for OE-matched rotor construction
- Smooth surface type for consistent pad contact
- 5-lug pattern with 112 mm bolt circle diameter
- Center hole diameter: 68 mm
GCX Product Line Details
Centric’s GCX Elemental Protection rotor line uses application-specific coating patterns and metallurgy to align with the brake pad friction type and the vehicle’s OEM rotor profile. The RS200 coating is applied to non-mating surfaces to help protect against corrosion while maintaining a clean finish over time. For buyers comparing Centric GCX rotors, part number 320.33074H follows that same OE-focused approach for front brake service.
Detailed Description
This Centric GCX rotor measures 12.323 inches in outside diameter, 2.217 inches in overall height, and 1.024 inches nominal thickness, with a discard thickness of 0.866 inch. The floating disc mounting, straight vane venting, and fully coated construction make it a practical replacement for front brake service where corrosion protection and OE-style dimensions matter. If you are sourcing a Centric 320.33074H rotor for a Volkswagen Sharan or Volkswagen EuroVan, this part is built around the original vehicle specifications rather than a universal fit.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Front brake rotor wear and scoring
- Rust buildup on exposed rotor surfaces
- Brake pulsation caused by uneven rotor condition
- Noise from worn or corroded front rotors
- Loss of braking consistency from aged OE rotors
Installation Notes and Tips
Verify rotor diameter, hub center bore, bolt circle, and front position before installation. This rotor is for front applications only and does not include ABS tone ring or bearings. Inspect pads, caliper hardware, and hub condition during brake service to help ensure even rotor contact and proper braking performance.
Quality Assurance
Centric designs the GCX rotor line to match OE performance targets while using coated surfaces and high carbon metallurgy for corrosion protection and service life. Part number 320.33074H is engineered for the specified Volkswagen fitments and built to the dimensional and material requirements listed above.
