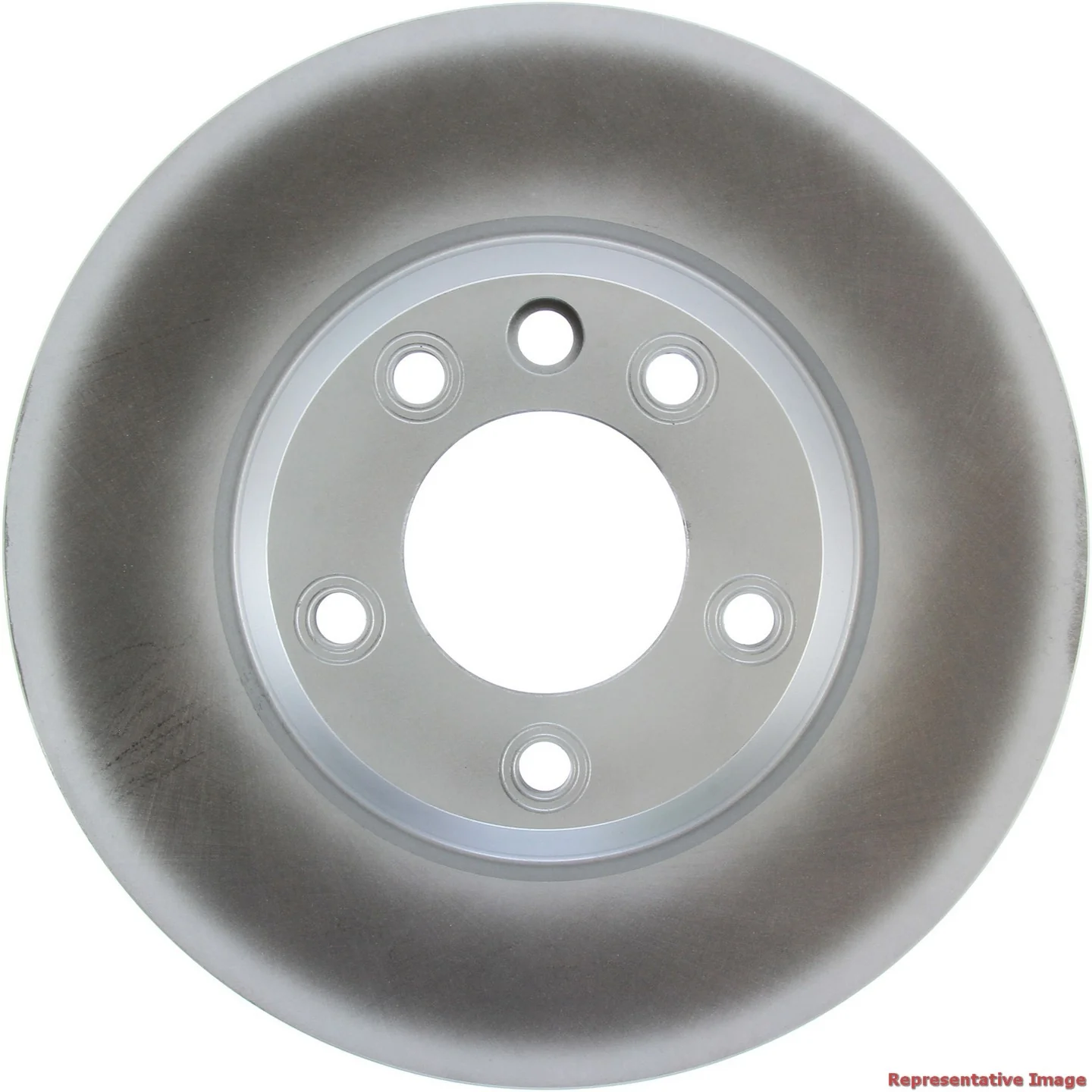

Centric 320.33091F Disc Brake Rotor - Front Right
Centric GCX Front Right Rotor for Porsche, Audi, Volkswagen
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.33091F, is a fully coated front right rotor built for select Porsche Cayenne, Audi Q7, and Volkswagen Touareg applications. It uses a vented, curved-vane design with a smooth friction surface and coated hat finish for a clean, corrosion-resistant service part.
Key Features
- Fully coated disc finish with coated hat for added protection against surface corrosion
- Vented rotor construction with curved vanes for front brake use
- Smooth surface type for consistent pad contact
- 350 mm outside diameter, 33.9 mm nominal thickness, 32.0 mm discard thickness
- Floating disc mounting, 5-lug pattern, 130 mm bolt circle
- Center hole diameter: 85.1 mm; overall height: 68.8 mm
- ABS tone ring not included; bearings not included
Product Details
Centric GCX Elemental Protection Disc Brake Rotors are built for drivers who need a direct-fit replacement rotor with corrosion protection on exposed surfaces. This Centric 320.33091F rotor is specified for the front right position and matches 350 mm iron front disc applications on select Porsche Cayenne, Audi Q7, and Volkswagen Touareg models. The fully coated finish helps protect the rotor hat and disc surfaces during storage and service, while the vented, curved-vane design supports heat management in front brake operation.
Compatible With 2011-2018 Porsche Cayenne, front right; 2007-2015 Audi Q7, front right; 2003-2006 Porsche Cayenne, front right; 2008-2010 Porsche Cayenne, front right; and 2004-2010 Volkswagen Touareg, front right. Part number 320.33091F is the reference to verify against your existing rotor dimensions and brake package.
Common Reasons to Replace
- Brake pulsation or vibration from rotor wear
- Visible scoring, grooves, or uneven friction surfaces
- Corrosion on the rotor hat or braking surface
- Reduced braking consistency from thickness loss
- Noise caused by worn or heat-affected front rotors
Installation Notes
Confirm rotor diameter, center hole, bolt circle, and front right position before installation. This rotor is for 350 mm front disc brake applications and should be matched with the correct pad set for the vehicle’s brake package. Inspect caliper condition, hub surface, and wheel hardware during service, and clean the hub face before mounting to help prevent runout-related issues.
Quality Assurance
Centric GCX rotors are engineered as replacement brake components with coated surfaces for improved resistance to elemental exposure. Verify fitment by year, make, model, and brake specification before purchase. Part number 320.33091F should be matched to the vehicle’s original rotor dimensions for proper installation.
