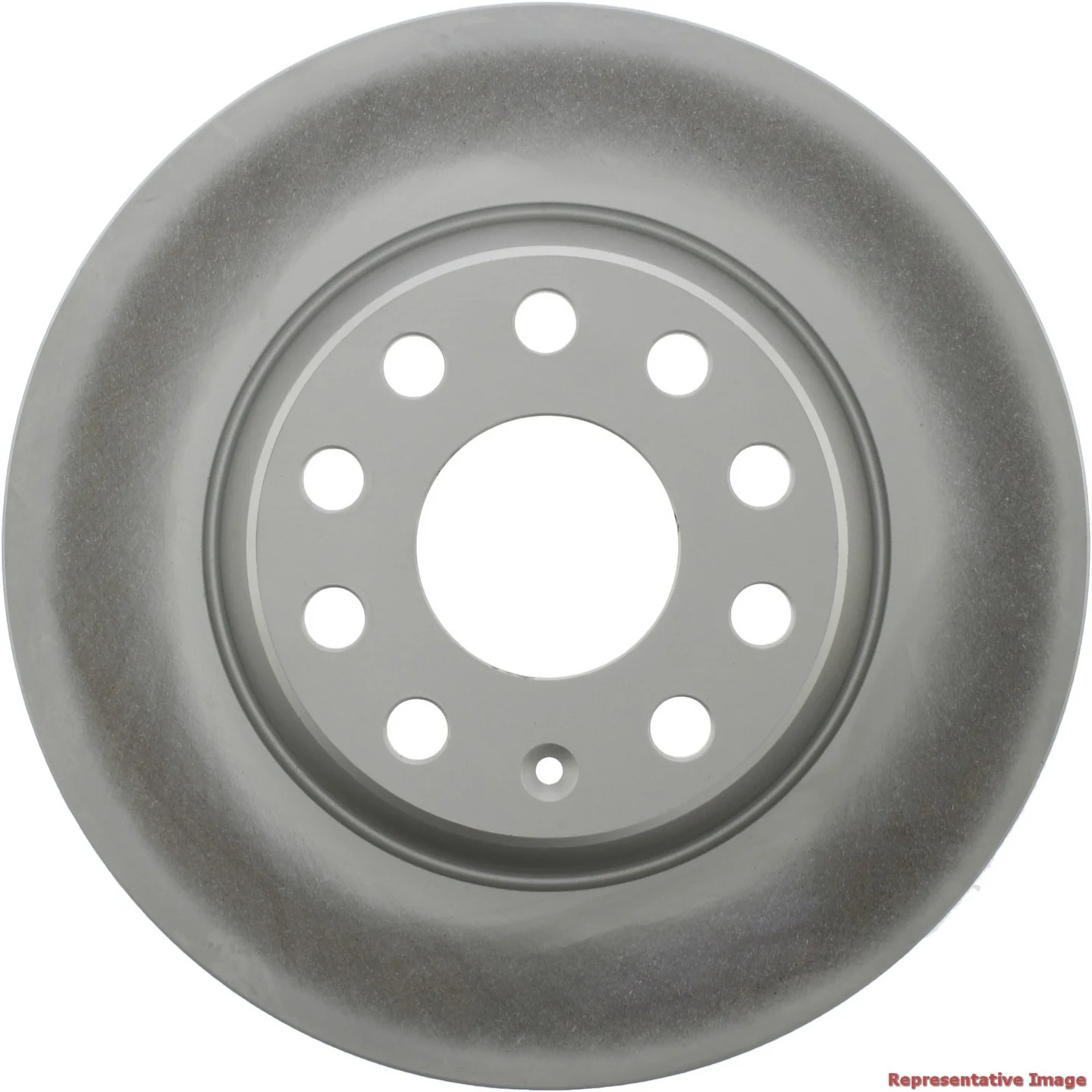

Centric 320.33099H Disc Brake Rotor - Rear
Centric GCX Rear Brake Rotor Overview
The Centric GCX Elemental Protection Disc Brake Rotor is built for rear applications that need OE-style braking performance with added resistance to rust and corrosion. This fully coated, high carbon rotor is engineered for select Volkswagen and Audi platforms, including rear brake service on the Volkswagen Jetta, Tiguan, GTI, Passat, and Audi A3.
Part number 320.33099H uses Centric’s GCX FC design approach with coating applied to non-mating surfaces and metallurgy matched to OEM-style requirements for the application.
Key Features
- Part number 320.33099H
- Rear disc brake rotor for select 2005-2010 Volkswagen and Audi applications
- Fully coated disc finish and coated hat finish for added corrosion resistance
- High carbon rotor metallurgy for OE-style thermal and structural characteristics
- Solid rotor design with smooth surface type
- Outside diameter: 286.1 mm; nominal thickness: 11.9 mm
- Discard thickness: 10.0 mm
- 5-lug pattern with 112.1 mm bolt circle and 65.0 mm center hole
- Floating disc mounting configuration
Product Details
Centric’s GCX Elemental Protection Disc Brake Rotors are designed to match original equipment performance while improving long-term appearance and corrosion protection. The RS200 coating is applied to the non-mating surfaces, helping protect the rotor hat and outer surfaces from rust buildup without affecting the braking surface. The high carbon alloy formulation supports stable braking characteristics and is selected to align with the OEM metallurgical profile for the vehicle application. This makes 320.33099H a practical choice for rear brake service on the Volkswagen Jetta, Volkswagen GTI, Volkswagen Passat, Volkswagen Tiguan, and Audi A3 platforms listed below.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Rear rotor rust and corrosion on coated brake components
- Brake pulsation caused by worn or below-spec rotors
- Reduced braking consistency from heat-affected rotor surfaces
- Visual deterioration from exposed, uncoated rotor hats and edges
- OE replacement needs for rear brake service on listed Volkswagen and Audi models
Installation Notes
Verify rotor diameter, center hole, bolt circle, and rear-position fitment before installation. This rotor is listed for rear use only and is not supplied with bearings or an ABS tone ring. Confirm the vehicle’s brake configuration and any application notes, including Passat 4Motion exclusions and Jetta chassis notes, before ordering. For best results, inspect pads and related brake components during rotor replacement.
Quality Assurance
Centric GCX rotors are engineered to meet OE-style performance expectations with application-specific coating patterns and metallurgy selection. Part number 320.33099H is built for consistent fitment across the listed rear applications and for improved protection against rust and corrosion over the service life of the rotor.
Compatible Vehicles
- Fits 2009-2010 Volkswagen Jetta, rear — 286mm rear disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
- Fits 2009-2010 Volkswagen Tiguan, rear — Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
- Fits 2006-2009 Volkswagen GTI, rear — Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
- Fits 2008 Volkswagen Jetta, rear — 286mm diameter disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
- Fits 2006-2008 Volkswagen Passat, rear — Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
- Fits 2006-2007 Audi A3, rear — Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
- Fits 2006-2007 Audi A3 Quattro, rear — Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
- Fits 2006-2007 Volkswagen Jetta, rear — Fr Ch# 1K-6-741 207 - Front Wheel Bearing and Hub Assembly.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
- Fits 2006-2007 Volkswagen Passat, rear — Exclude 4Motion applications.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
- Fits 2005 Volkswagen Jetta, rear — Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
