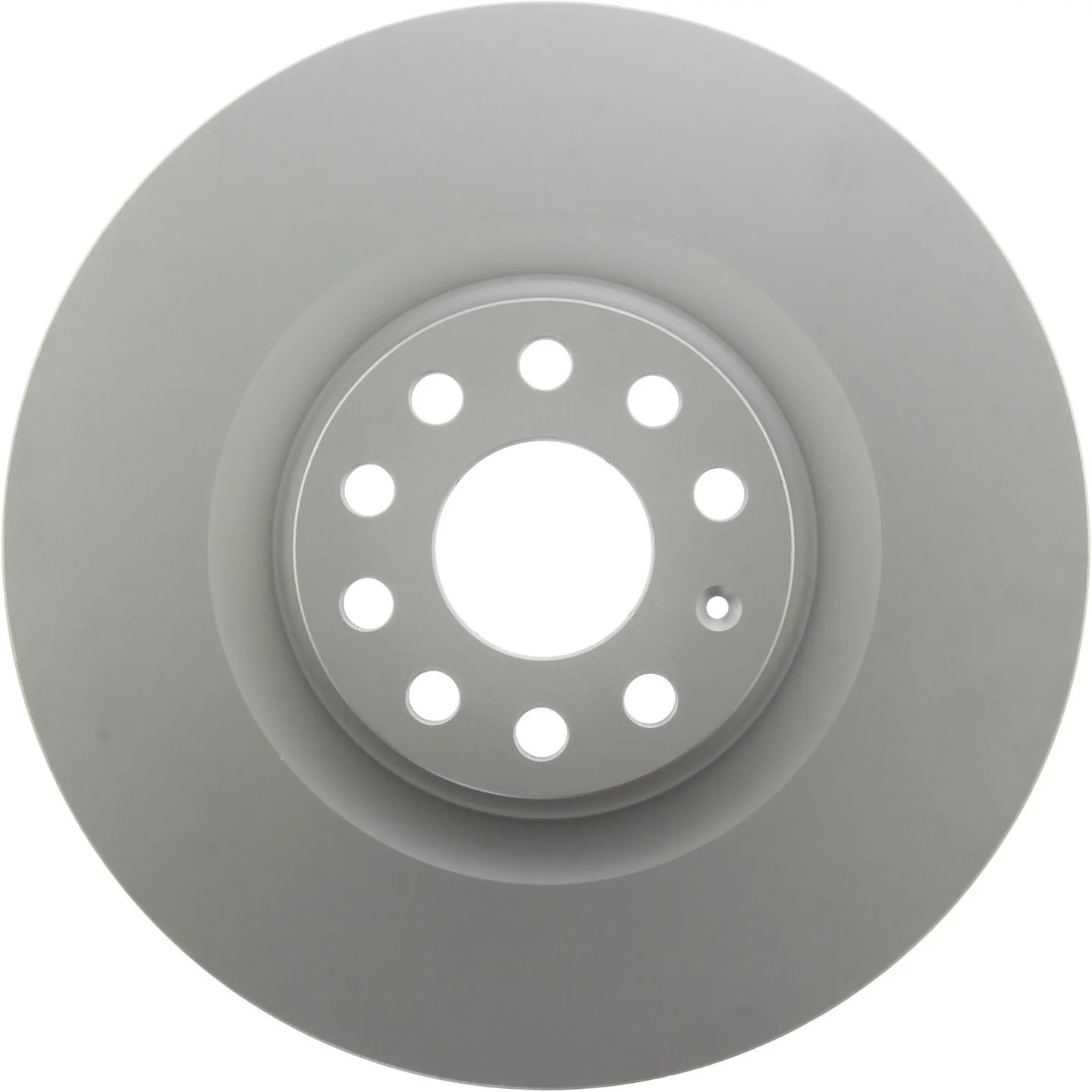

Centric 320.33112H Disc Brake Rotor - Front
Centric GCX Front Brake Rotor Overview
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.33112H, is a front vented rotor built for OE-style braking performance and corrosion resistance. It uses a fully coated finish on non-mating surfaces to help maintain a cleaner appearance and longer service life on vehicles such as the Volkswagen Golf R, Audi S3, and Volkswagen Passat.
Centric’s GCX rotor line pairs application-specific coating patterns with high-carbon metallurgy to match the OEM-style friction and thermal profile for the vehicle. This rotor is designed for drivers replacing a front brake rotor on select Volkswagen and Audi platforms that require a 345 mm vented disc.
Key Features
- Part number 320.33112H
- Front disc brake rotor with vented construction
- Fully coated disc finish and coated hat finish
- High-carbon rotor metallurgy for OE-style performance
- Smooth surface type for consistent pad contact
- Outside diameter: 13.583 in. / 345.000 mm
- Nominal thickness: 1.177 in. / 29.900 mm
- Discard thickness: 1.063 in. / 27.000 mm
- 5-lug pattern with 112 mm bolt circle
- Center hole diameter: 2.559 in. / 65.000 mm
Product Details
The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content line is engineered to deliver OE-matched fit and corrosion protection across a wide range of applications. The RS200-style coating is applied to non-mating surfaces to help resist rust, while the rotor metallurgy is selected to align with the OEM carbon profile for the vehicle. For front brake service on the Audi S3 and Volkswagen Golf R, this rotor provides the correct vented design, floating mounting style, and 5 x 112 mm bolt pattern.
This part cross-references no listed interchange numbers in the provided data. Part number 320.33112H is also a useful reference when searching for a front brake rotor for Volkswagen Passat, Volkswagen CC, and Audi S3 applications.
What This Rotor Helps Address
- Front brake rotor rust and corrosion on exposed surfaces
- Brake pulsation caused by worn or below-spec rotors
- Reduced braking consistency from uneven rotor wear
- Noise or vibration associated with rotor surface degradation
- Fitment issues when replacing an OE-style 345 mm front rotor
Installation Notes and Fitment
Compatible With 2012-2013 Volkswagen Golf R, front; 2008-2012 Audi S3, front; 2009-2011 Volkswagen CC, front; 2009-2010 Volkswagen Passat CC, front; 2008-2009 Volkswagen Passat, front; 2008 Volkswagen R32, front; and 2006-2007 Volkswagen Passat, front 4Motion.
Before installation, verify rotor diameter, center bore, bolt circle, and minimum thickness against the existing brake system. Clean the hub mounting surface thoroughly and inspect pads, calipers, and hardware condition so the new rotor seats evenly and performs as intended.
Quality Assurance
Centric designs the GCX rotor line to match OE performance targets while adding full-surface corrosion protection on non-mating areas. The high-carbon construction and application-specific coating approach are intended to support consistent braking performance and a clean finish over the life of the rotor.
