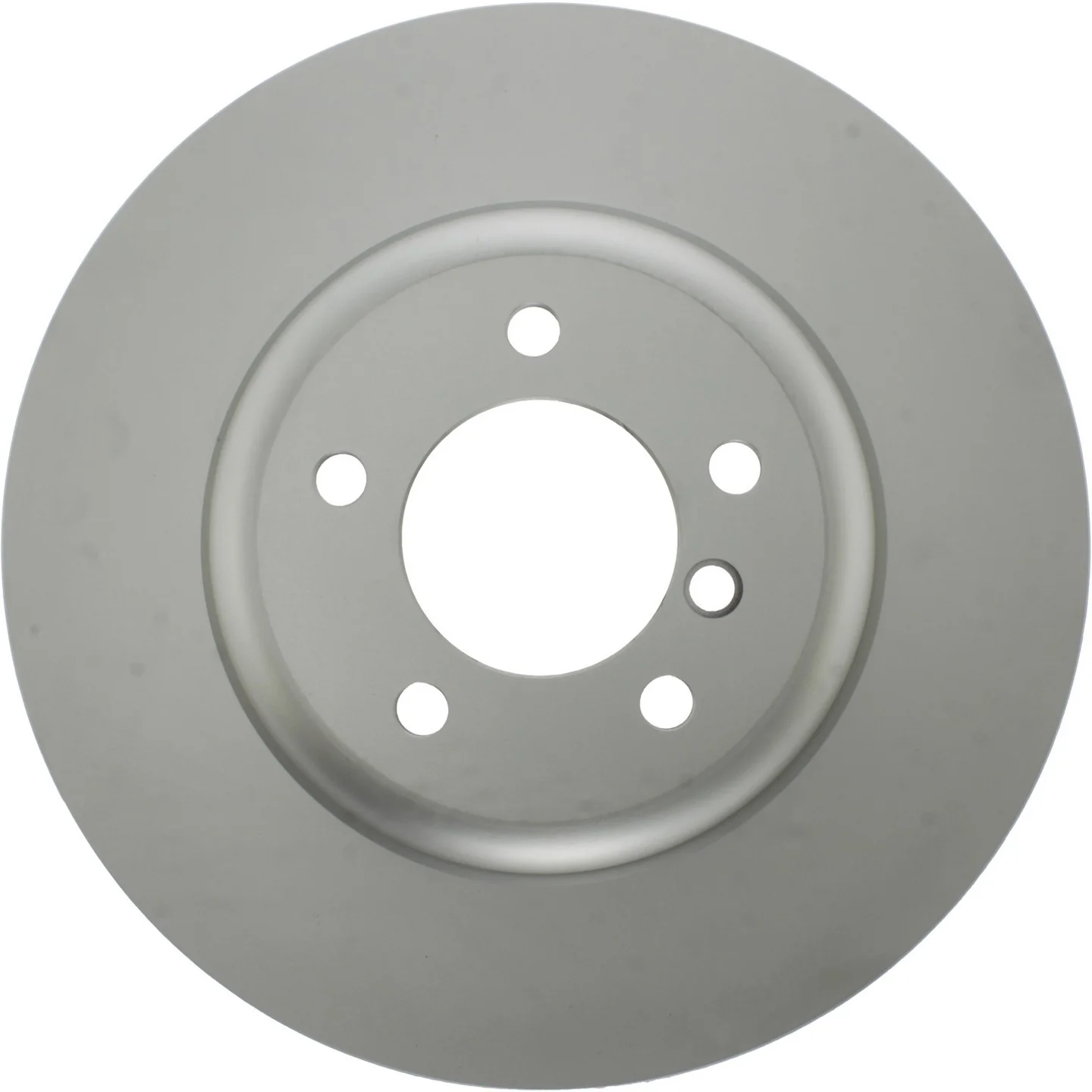

Centric 320.34071H Disc Brake Rotor - Front
Centric GCX Front Brake Rotor Overview
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.34071H, is a front vented rotor built for OE-style braking performance and corrosion resistance. It is a fitment-specific replacement for select BMW 5 Series and 6 Series models, including BMW 535i, 550i, 650i, 545i, and 645Ci front applications.
With a fully coated disc finish, coated hat, and Centric RS200 protection on non-mating surfaces, this rotor is built to maintain a cleaner appearance and resist rust on exposed areas. The high carbon metallurgy is matched to the vehicle application for consistent braking characteristics.
Key Features
- Part number 320.34071H front disc brake rotor
- Fully coated disc finish with coated hat for added corrosion protection
- High carbon rotor metallurgy for OE-matched performance
- Vented rotor design with straight vanes
- Smooth surface type for consistent pad contact
- 5-lug pattern with 120 mm bolt circle diameter
- Floating disc mounting design
- Fits select BMW front brake applications
Product Line Details
Centric GCX Elemental Protection rotors are application-specific, with coating patterns and metallurgy selected to match the brake pad friction type and the OEM profile for the vehicle. The GCX line is engineered to provide rust and corrosion protection on non-mating surfaces while preserving the braking feel expected from an OE replacement rotor. For buyers searching for a BMW 535i front brake rotor, BMW 550i front rotor, or BMW 645Ci front brake rotor, this line is built around those exact vehicle requirements.
Detailed Description
Centric 320.34071H is a vented front brake rotor with an outside diameter of 348 mm, overall height of 77.1 mm, and nominal thickness of 30.0 mm. The rotor uses a 79 mm center hole diameter, 5 lug holes, and a 120 mm bolt circle diameter. It is designed for front axle use on 2004-2005 BMW 545i, 2004-2005 BMW 645Ci, 2006-2010 BMW 550i, 2006-2010 BMW 650i, and 2008-2010 BMW 535i models.
This rotor is a direct-fit choice for drivers replacing worn front brake rotors on BMW 5 Series and 6 Series vehicles. The fully coated finish helps protect exposed surfaces from rust, while the high carbon construction supports stable braking performance under everyday driving conditions.
What This Rotor Helps Address
- Front brake pulsation caused by worn or uneven rotor surfaces
- Rust buildup on exposed rotor areas
- Reduced braking consistency from heat-worn rotors
- Noise related to rotor surface wear
- Replacement needs for OE-style BMW front brake service
Installation Notes and Tips
Verify rotor dimensions, hub fitment, and brake pad condition before installation. Clean the hub mounting surface thoroughly to help prevent runout-related issues, and inspect calipers and pads for uneven wear before installing the new rotor. This rotor is for front applications only and uses a vented design.
Fits 2004-2005 BMW 545i, front; fits 2004-2005 BMW 645Ci, front; fits 2006-2010 BMW 550i, front; fits 2006-2010 BMW 650i, front; fits 2008-2010 BMW 535i, front. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Quality Assurance
Centric designs the GCX rotor line to align with OE performance targets and vehicle-specific metallurgy requirements. The RS200 coated finish and application-specific construction are used to support consistent fitment and long-term corrosion protection on the listed BMW front brake applications.
