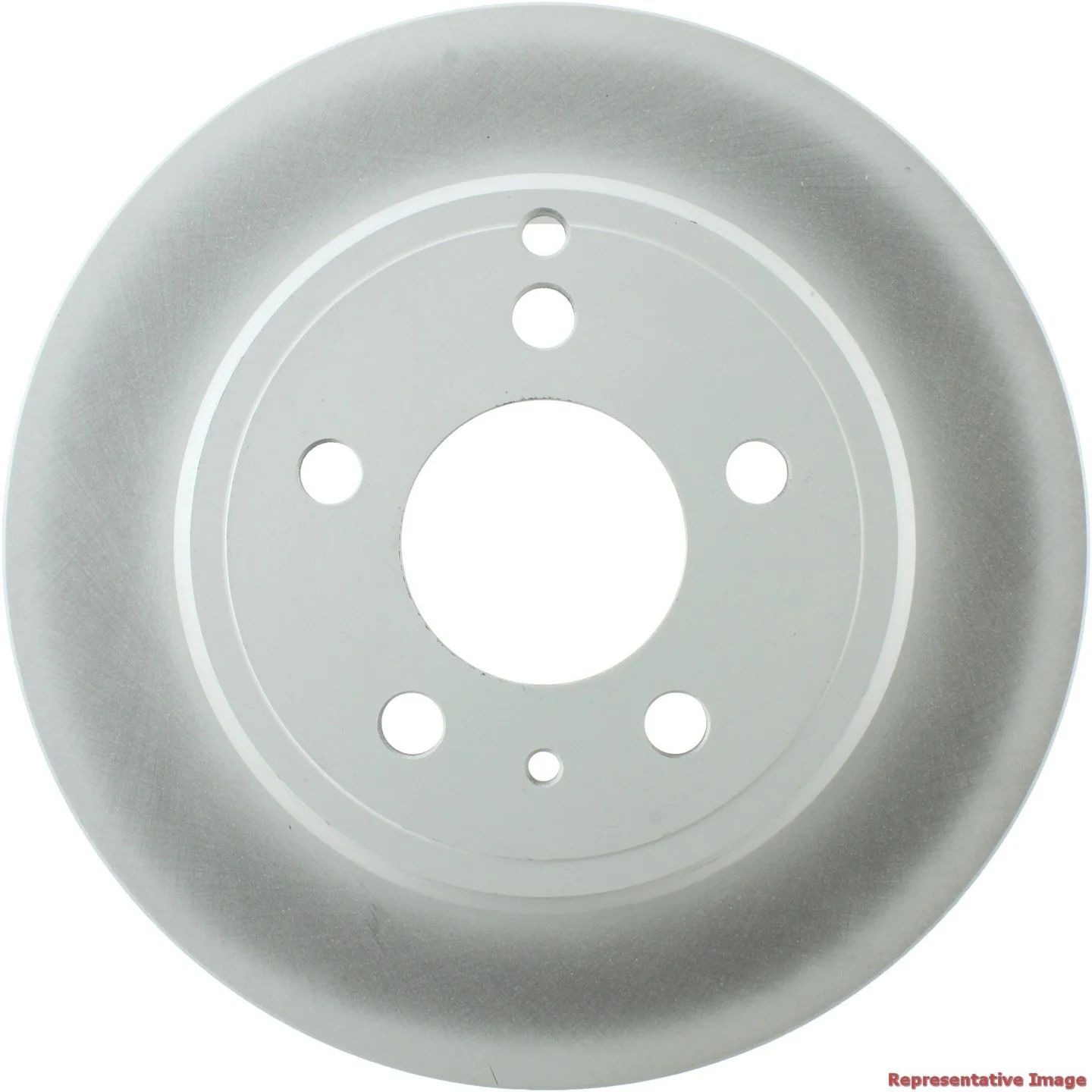

Centric 320.39020F Disc Brake Rotor - Rear
Centric GCX Rear Brake Rotor for Volvo
Centric GCX Elemental Protection Disc Brake Rotor, part number 320.39020F, is a rear solid rotor built for select Volvo applications. It features a fully coated disc finish and coated hat finish to help resist corrosion while maintaining a smooth braking surface.
Compatible with 1994-1997 Volvo 850 rear, 1998-2004 Volvo C70 rear, 1998-2000 Volvo S70 rear, and 1999-2000 Volvo V70 rear. This Centric 320.39020F rotor is also listed for 1998 Volvo V70 rear with 280mm front disc notes.
Key Features
- Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
- Part number 320.39020F
- Fully coated disc finish with coated hat finish
- Smooth surface type for consistent brake contact
- Solid rotor design
- Outside diameter: 295.000 mm / 11.614 in
- Nominal thickness: 9.600 mm / 0.378 in
- Discard thickness: 8.400 mm / 0.331 in
- 5-lug pattern with 108.000 mm bolt circle diameter
- Center hole diameter: 68.000 mm / 2.677 in
Product Details
The Centric GCX Elemental Protection line focuses on corrosion resistance through full coating coverage on the disc and coated hat. For Volvo rear brake service, this rotor provides the correct dimensions and mounting layout for the listed C70, S70, V70, and 850 applications. The Centric 320.39020F is a direct-fit rear disc brake rotor for vehicles that use a solid rotor configuration with a 295 mm outside diameter and 5-lug mounting pattern.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Brake Issues It Can Address
- Brake pulsation caused by rotor wear or thickness variation
- Surface rust on exposed rotor areas
- Reduced braking consistency from worn rear rotors
- Noise from uneven or damaged rotor surfaces
- Service replacement for rear brake maintenance on Volvo 850, C70, S70, and V70 models
Installation Notes and Tips
Verify rear axle fitment, rotor diameter, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal vibration. Inspect pads, caliper hardware, and wheel bearings during rotor replacement, and follow the vehicle manufacturer’s torque specifications when reinstalling the wheel.
Quality Assurance
Centric GCX rotors are built with coated surfaces to support corrosion resistance in everyday driving conditions. Confirm the part number 320.39020F against your vehicle’s rear brake specifications before ordering.
