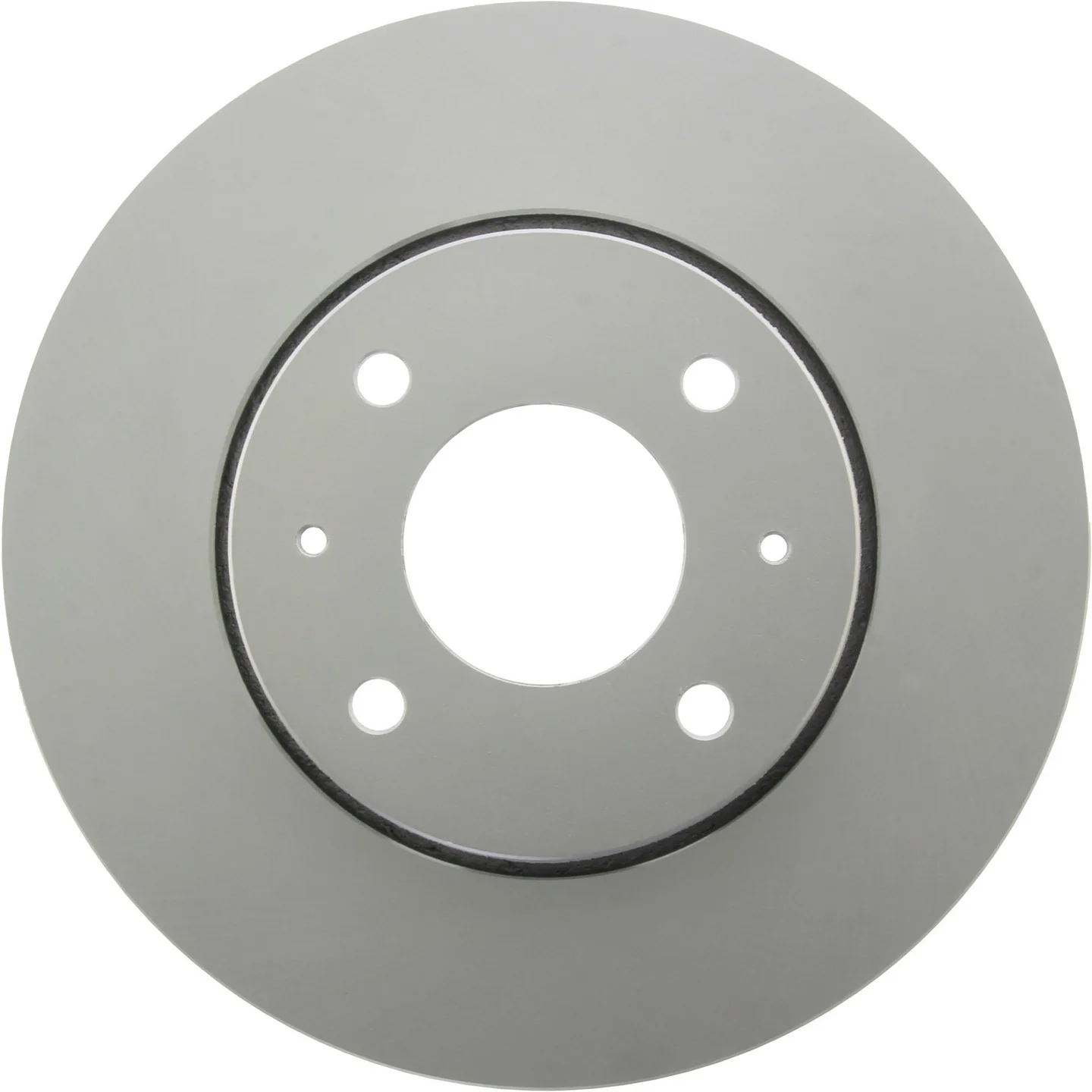

Centric 320.39027H Disc Brake Rotor - Front
Centric GCX Front Brake Rotor Overview
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.39027H, is a front vented rotor built for OE-style braking performance and corrosion resistance. It is a fitment-based replacement for select Volvo S40 and Volvo V40 applications, including 2001-2012 Volvo S40 front and 1999-2004 Volvo V40 front.
With a fully coated disc finish, coated hat, and high-carbon metallurgy, this Centric GCX rotor is engineered for consistent braking feel and long-term surface protection on daily-driven vehicles.
Key Features
- Part number 320.39027H
- Front disc brake rotor for select Volvo applications
- Fully coated disc finish with coated hat for rust and corrosion protection
- High-carbon rotor metallurgy matched to OEM-style requirements
- Vented rotor design with straight vane construction
- Smooth surface type for stable pad contact
- 4-lug, floating mount design with 114.3 mm bolt circle
- Outside diameter: 281 mm (11.063 in.)
- Nominal thickness: 24.0 mm; discard thickness: 21.5 mm
Product Details
The Centric GCX Elemental Protection Disc Brake Rotors line is built around application-specific coating patterns and metallurgy. Centric uses its RS200 finish on non-mating surfaces to help protect the rotor from rust and corrosion, while the high-carbon alloy supports OE-matching thermal and wear characteristics. For Volvo S40 and Volvo V40 front brake service, this rotor provides the dimensions and construction needed for a direct replacement on listed vehicles.
Fits 2001-2012 Volvo S40, front. Fits 1999-2004 Volvo V40, front. Fits 1999-2000 Volvo S40, front. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Rotor Helps Address
- Brake rotor rust on exposed surfaces
- Corrosion buildup that affects rotor appearance and service life
- Brake pulsation caused by worn or out-of-spec front rotors
- Reduced pad contact from uneven rotor wear
- Noisy braking from deteriorated rotor surfaces
Installation Notes and Tips
Verify rotor diameter, center hole, bolt circle, and thickness before installation. This rotor is for front applications only and does not include ABS tone ring or bearings. Inspect brake pads, caliper condition, and hub surfaces during service to help ensure proper rotor seating and braking performance.
Quality Assurance
Centric designs GCX rotors to match OE performance targets while adding full-surface corrosion protection on non-mating areas. The GCX line uses application-specific coating patterns and high-carbon metallurgy to support consistent fit and finish across listed Volvo S40 and Volvo V40 front brake applications.
