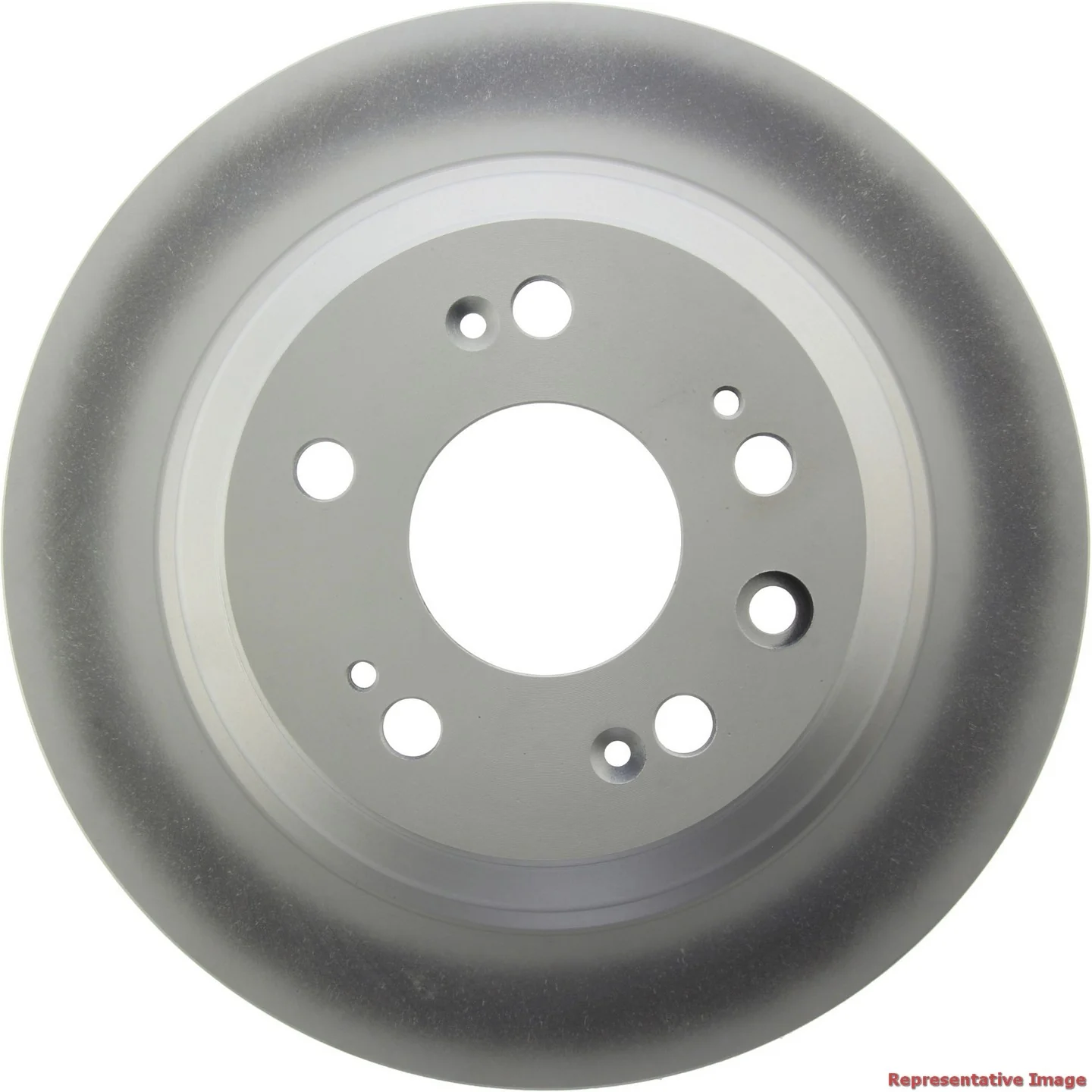

Centric 320.40067F Disc Brake Rotor - Rear
Rear Brake Rotor for Acura RL
Centric GCX Elemental Protection Disc Brake Rotor 320.40067F is a rear vented rotor built for 2005-2012 Acura RL applications. It features a fully coated disc finish and coated hat finish to help resist corrosion while maintaining a smooth braking surface.
For drivers searching for a rear brake rotor for 2005-2012 Acura RL, this Centric GCX Elemental Protection Disc Brake Rotor 320.40067F is built around OE-style dimensions and fitment.
Key Features
- Fits 2005-2012 Acura RL, rear
- Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
- Part number 320.40067F
- Fully coated disc finish with coated hat finish
- Vented rotor design with straight vane style
- Smooth surface type for consistent pad contact
- 5-lug pattern with 120.000 mm bolt circle diameter
- Outside diameter: 309.500 mm (12.185 in)
- Nominal thickness: 16.000 mm (0.630 in)
- Discard thickness: 14.000 mm (0.551 in)
Product Details
The Centric GCX Elemental Protection line focuses on corrosion resistance through full coating coverage on the disc and coated hat. This rear rotor for Acura RL applications uses a vented construction, straight vanes, and a smooth friction surface to support stable braking performance and even pad contact. The 320.40067F rotor measures 309.500 mm in outside diameter, 67.000 mm in overall height, and 70.100 mm at the center hole, with a 5-lug, 120.000 mm bolt circle layout.
Use this Centric GCX Elemental Protection Disc Brake Rotor 320.40067F when replacing worn rear rotors on 2005-2012 Acura RL models. The coated finish helps protect exposed metal surfaces, while the OE-style dimensions support direct replacement service on the rear axle.
Common Reasons for Replacement
- Brake pulsation from rotor wear or thickness variation
- Reduced braking smoothness from scored or uneven rotor surfaces
- Corrosion on the rotor hat or outer surfaces
- Noise caused by worn or heat-affected rear rotors
- Service replacement for a rear Acura RL brake rotor
Installation Notes
Verify rotor dimensions, hub fit, and rear position before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect brake pads and caliper hardware for wear before reassembly. After installation, follow the vehicle manufacturer’s brake bedding procedure.
Quality Assurance
Centric GCX Elemental Protection rotors are built with coated surfaces for added corrosion resistance and consistent service life in demanding brake environments. Part number 320.40067F is specified for 2005-2012 Acura RL rear applications.
