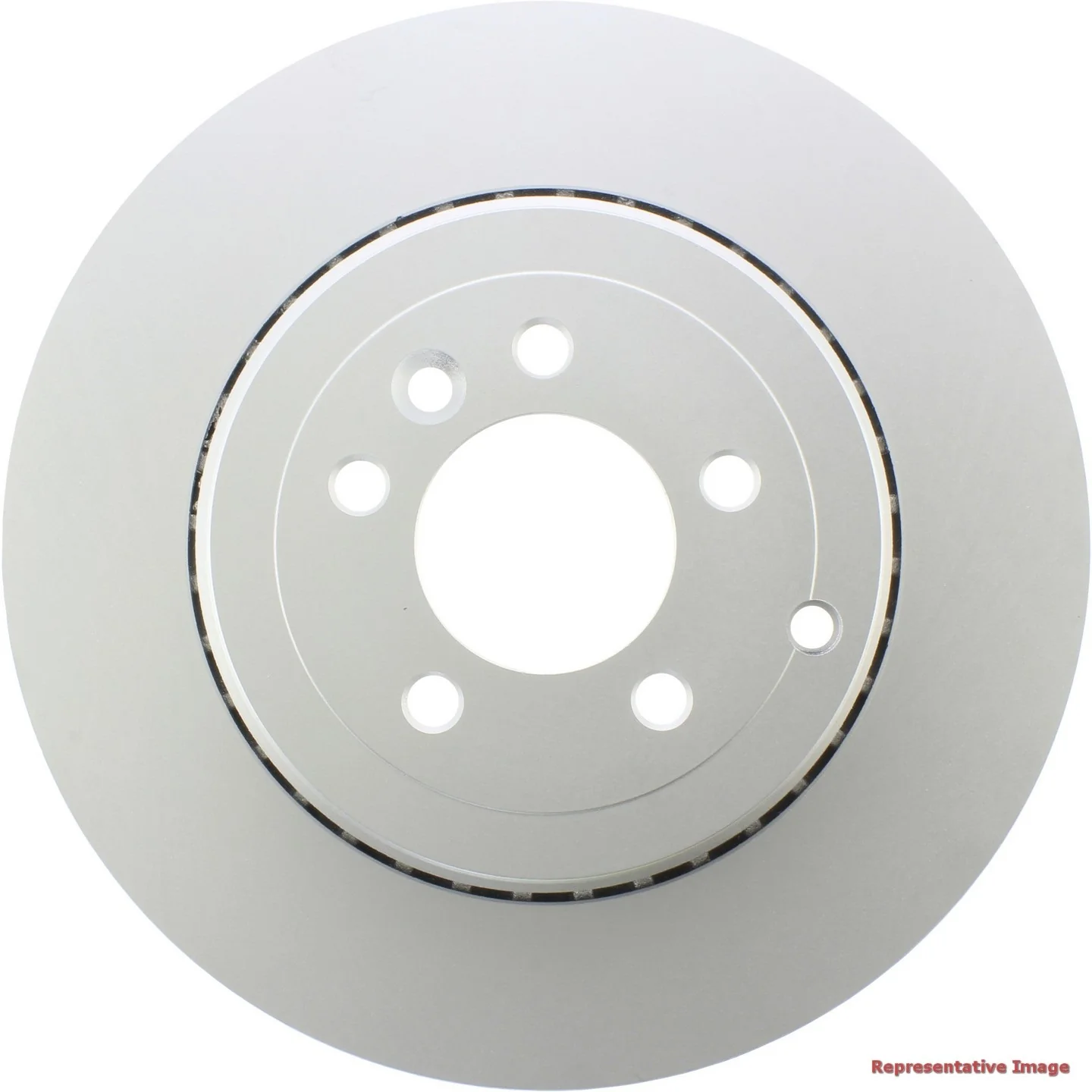

Centric 320.42043F Disc Brake Rotor - Front
Centric GCX Front Brake Rotor for Maxima and I30
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.42043F, is a front vented rotor built for select Nissan Maxima and INFINITI I30 applications. Its fully coated disc finish and coated hat help protect exposed surfaces, while the smooth braking surface supports consistent pad contact.
Key Features
- Part number 320.42043F
- Fully coated disc finish with coated hat finish
- Vented rotor design with straight vanes
- Smooth surface type for even pad engagement
- Outside diameter: 280.000 mm (11.024 in)
- Nominal thickness: 22.000 mm (0.866 in)
- Discard thickness: 20.000 mm (0.787 in)
- 5-lug pattern with 114.300 mm bolt circle
- Floating disc mounting and 2 miscellaneous holes
- Center hole diameter: 68.000 mm
Product Details
Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are built for drivers who want a front brake rotor with corrosion protection on both the disc and hat surfaces. This Centric rotor uses a vented, straight-vane design and a smooth braking face to support stable braking performance on daily-driven vehicles. The 280 mm outside diameter, 22 mm nominal thickness, and 68 mm center hole diameter make 320.42043F a direct-spec replacement for the listed Nissan Maxima and INFINITI I30 front brake applications.
Compatible With 1989-1998 Nissan Maxima, front; 1999 Nissan Maxima, front to 3/99; and 1996-1999 INFINITI I30, front. This part number 320.42043F is also a useful reference when searching for a front brake rotor for 1989-1999 Nissan Maxima or 1996-1999 INFINITI I30 fitment.
Common Problems This Rotor Can Address
- Front brake pulsation caused by worn or uneven rotor surfaces
- Corrosion on exposed rotor and hat areas
- Reduced braking consistency from rotor wear beyond discard thickness
- Noise or vibration related to rotor surface irregularities
- Fitment issues when replacing a front rotor with the correct bolt pattern and center bore
Installation Notes and Tips
Verify rotor dimensions, hub bore, and 5-lug bolt circle before installation. Clean the hub mounting surface thoroughly so the floating rotor seats flat, and inspect brake pads and caliper hardware for wear before reassembly. For best results, replace rotors in axle pairs and follow the vehicle manufacturer’s brake bedding procedure after installation.
Quality Assurance
Centric GCX rotors are engineered with application-specific dimensions and protective coatings to support reliable fitment and corrosion resistance in everyday service. Part number 320.42043F is specified for the listed front applications on Nissan Maxima and INFINITI I30 models.
