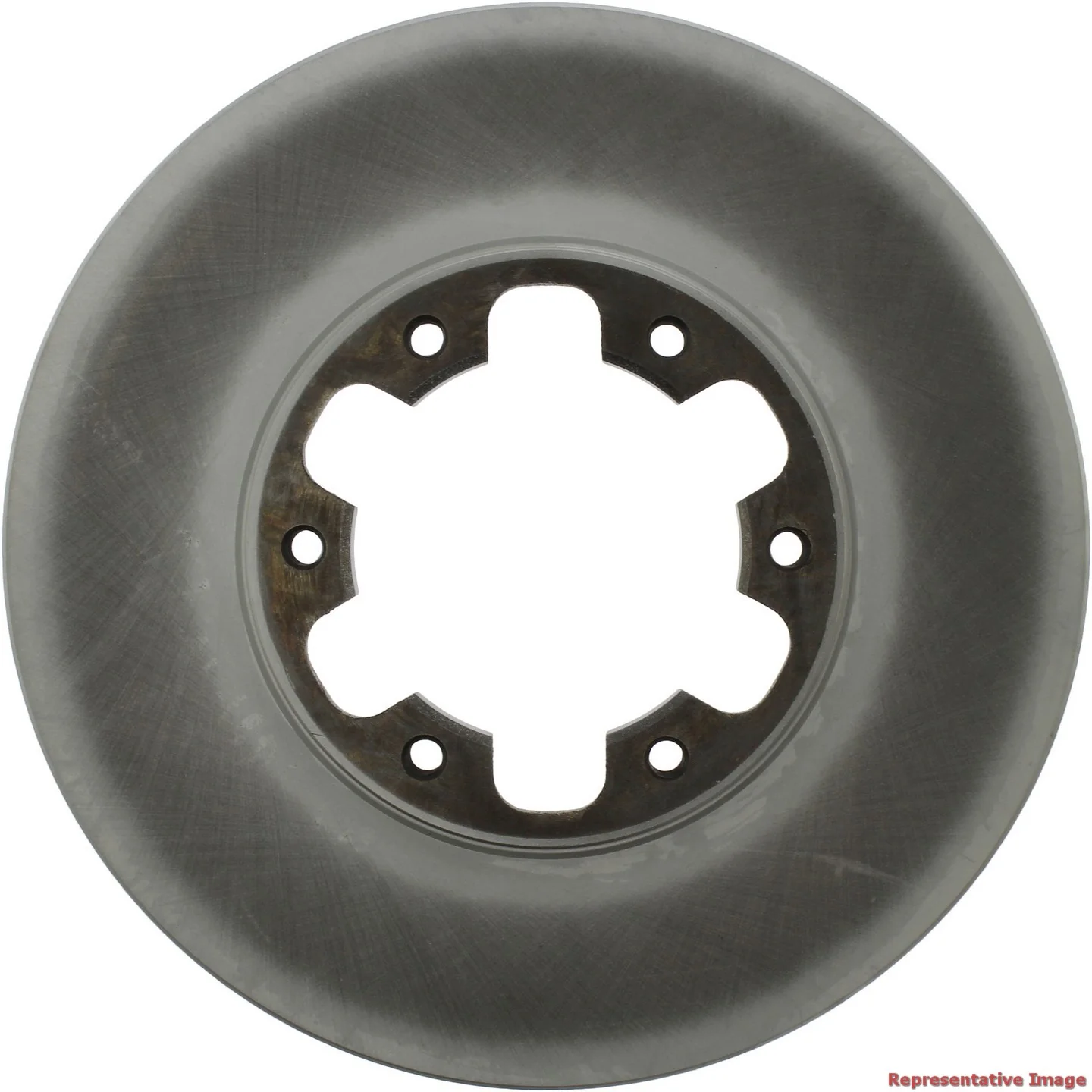

Centric 320.42063F Disc Brake Rotor - Front
Centric GCX Front Brake Rotor Overview
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.42063F, is a front vented rotor built to match OE performance while adding corrosion resistance on non-mating surfaces. It is a fitment-specific replacement for select Nissan Frontier, Nissan Xterra, Nissan Pathfinder, and INFINITI QX4 applications.
Centric’s GCX Full Coating line uses an application-specific coating pattern and rotor metallurgy selected to align with OEM-style brake pad friction and vehicle requirements. For drivers searching for a front brake rotor for 2003-2004 Nissan Frontier or a coated front rotor for 2000-2004 Nissan Xterra, this part number 320.42063F is built for those exact front applications.
Key Features
- Fully coated disc finish with coated hat for added rust and corrosion protection
- Vented rotor design with smooth surface type
- Outside diameter: 11.142 in. / 283 mm
- Nominal thickness: 1.102 in. / 28 mm
- Discard thickness: 1.024 in. / 26 mm
- 6 mounting bolt holes with 4.882 in. / 124 mm bolt circle diameter
- Center hole diameter: 3.937 in. / 100 mm
- Straight vane style and behind-the-hub disc mounting
Product Details
Centric GCX rotors are engineered to deliver OE-style braking performance with improved surface protection for the life of the rotor. The RS200 coating is applied to non-mating surfaces to help resist rust on the hat and outer areas, while the rotor metallurgy is matched to OEM-style carbon content for the vehicle platform. This makes the Centric GCX 320.42063F a practical choice for front brake service on 1996-1998 Nissan Pathfinder, 1997 INFINITI QX4, and 2000-2004 Nissan Xterra front brake applications.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Rotor Can Address
- Front brake rotor rust on exposed surfaces
- Brake pulsation caused by worn or below-spec rotors
- Reduced braking consistency from heat-worn rotor surfaces
- Noise or vibration related to rotor wear
- Fitment issues when replacing an OE-style front vented rotor
Installation Notes
Verify rotor dimensions, bolt pattern, and hub fitment before installation. This rotor uses a 6-bolt pattern, a 124 mm bolt circle, and a 100 mm center hole diameter, so matching the vehicle hub and brake setup is important. Clean the hub face thoroughly before mounting to help prevent runout-related brake noise or pedal pulsation.
Compatible With: Fits 2003-2004 Nissan Frontier, front; Fits 2000-2004 Nissan Xterra, front; Fits 1998 Nissan Pathfinder, front; Fits 1997 INFINITI QX4, front; Fits 1996-1997 Nissan Pathfinder, front.
Quality Assurance
Centric designs the GCX line to match OE performance targets while using corrosion-resistant coating technology and vehicle-specific metallurgy. Part number 320.42063F is built as a direct-fit front disc brake rotor for the listed applications.
