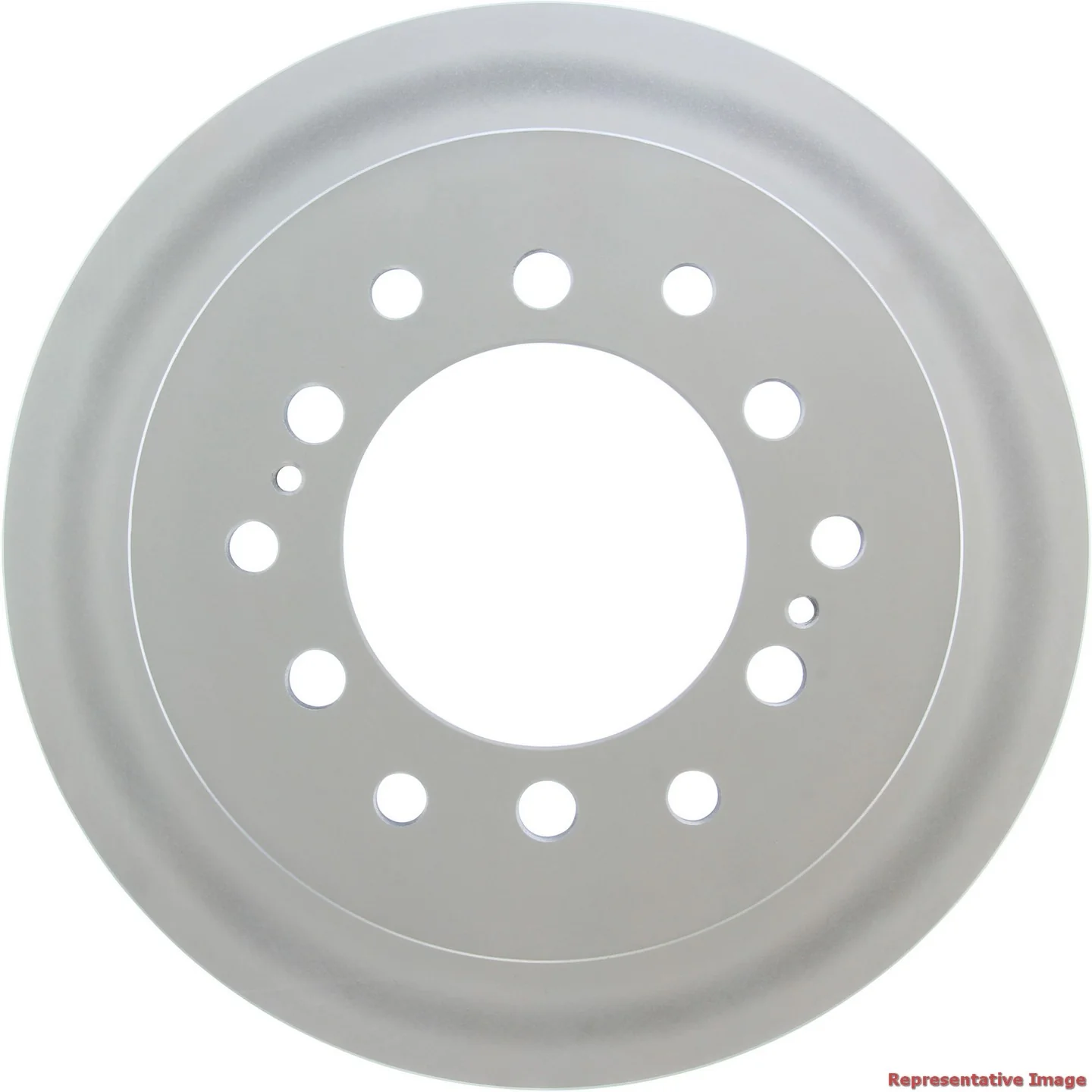

Centric 320.42086F Disc Brake Rotor - Rear
Rear Brake Rotor for Nissan Pathfinder
Centric GCX Elemental Protection Disc Brake Rotor 320.42086F is a rear vented rotor built for 2004 Nissan Pathfinder models from 8/2004 and 2005-2012 Nissan Pathfinder applications. It combines a fully coated disc finish with a coated hat to help protect exposed metal surfaces while maintaining a smooth braking surface.
For drivers searching for a rear brake rotor for Nissan Pathfinder 2005-2012 or a 2004 Nissan Pathfinder rear rotor from 8/2004, this Centric GCX Elemental Protection rotor provides the correct fitment details and OE-style dimensions for the application.
Centric GCX Elemental Protection Line
The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on corrosion resistance across the rotor surfaces, including the hat area. That full coating approach helps reduce rust formation on non-friction areas while preserving the smooth braking face needed for consistent pad contact.
Key Features
- Part number: 320.42086F
- Rear disc brake rotor for Nissan Pathfinder
- Fits 2005-2012 Nissan Pathfinder, rear
- Fits 2004 Nissan Pathfinder, rear, from 8/2004
- Fully coated disc finish with coated hat finish
- Vented rotor design with straight vanes
- Smooth surface type for brake pad contact
- Outside diameter: 12.114 in. (307.700 mm)
- Nominal thickness: 0.709 in. (18.000 mm)
- Discard thickness: 0.630 in. (16.000 mm)
- 6 lug holes with 4.500 in. bolt circle diameter
- Center hole diameter: 2.677 in. (68.000 mm)
Detailed Description
Centric 320.42086F is a rear vented disc brake rotor engineered for Nissan Pathfinder fitment with a 12.114-inch outside diameter, 18.000 mm nominal thickness, and 16.000 mm discard thickness. The floating/DIH mounting style, 6-lug pattern, and 114.300 mm bolt circle support the specified rear brake application. The fully coated disc finish and coated hat finish help protect the rotor’s non-friction surfaces from corrosion exposure.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Rotor Helps Address
- Rear brake pulsation caused by worn or uneven rotor surfaces
- Brake noise related to rotor wear or surface irregularity
- Corrosion on exposed rotor hat and non-friction areas
- Reduced braking consistency from rotor thickness loss
- Fitment issues when replacing a rear rotor on a Nissan Pathfinder
Installation Notes and Tips
Confirm rear axle fitment before ordering and match the rotor to the vehicle year and build date. For 2004 Nissan Pathfinder applications, this rotor applies from 8/2004. Inspect brake pads, caliper condition, and hub mounting surfaces during installation, and verify rotor thickness and runout after mounting.
Quality Assurance
Centric GCX Elemental Protection rotors are built with coated surfaces and application-specific dimensions to support consistent replacement fitment on the Nissan Pathfinder rear brake system. Part number 320.42086F should be matched to the listed year, model, and rear position before installation.
