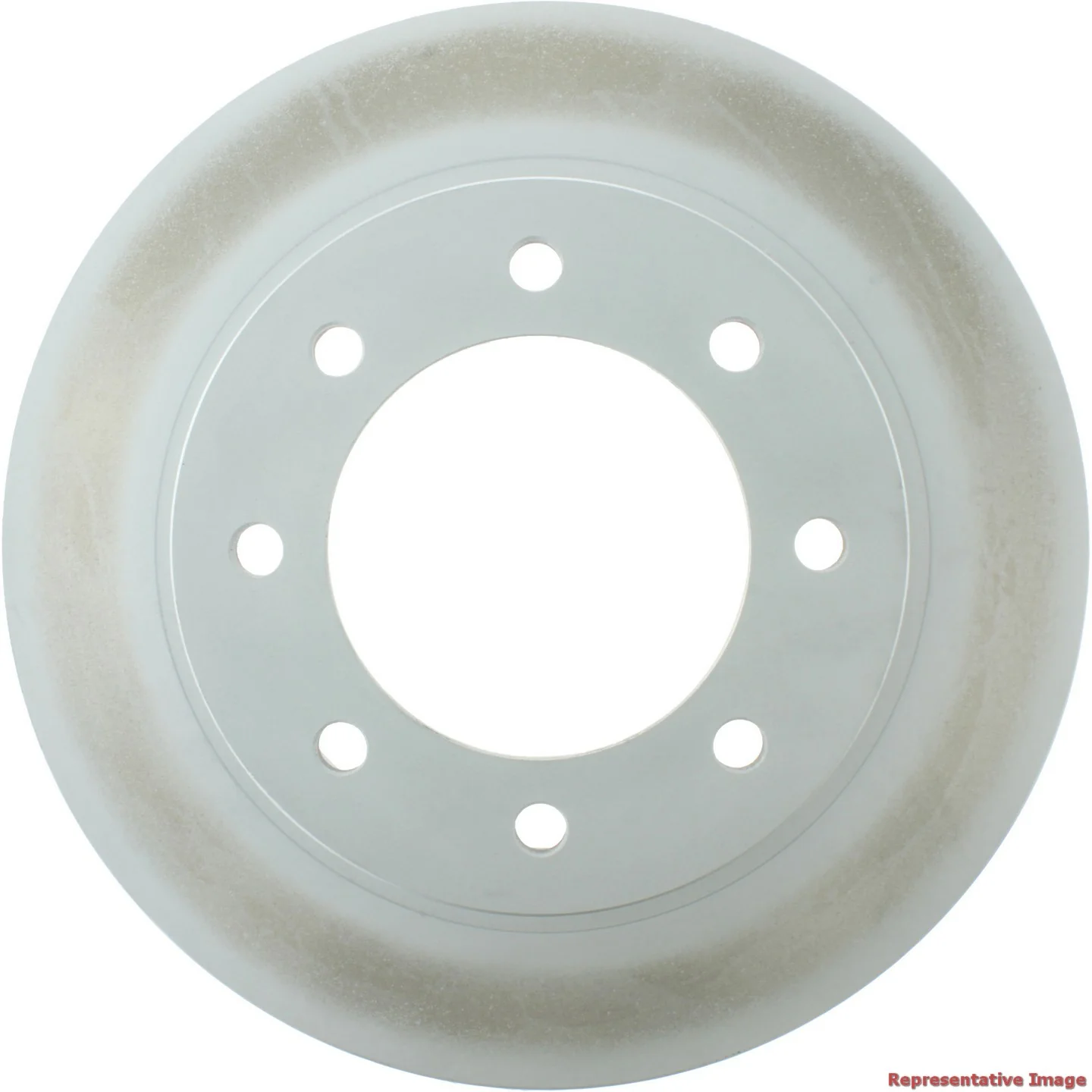

Centric 320.42110F Disc Brake Rotor - Front
Centric GCX Front Brake Rotor for Nissan NV
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.42110F, is a front vented rotor built for 2012-2021 Nissan NV1500, NV2500, and NV3500 applications. It features a fully coated disc finish and coated hat finish to help protect exposed surfaces while maintaining a smooth braking surface.
Key Features
- Fits 2012-2021 Nissan NV1500, front
- Fits 2012-2021 Nissan NV2500, front
- Fits 2012-2021 Nissan NV3500, front
- Part number 320.42110F for direct application lookup
- Fully coated disc finish with coated hat finish
- Vented rotor design with straight vane style
- Smooth surface type for consistent pad contact
- Outside diameter: 14.173 in. / 360.000 mm
- Nominal thickness: 1.496 in. / 38.000 mm
- Discard thickness: 1.437 in. / 36.500 mm
- Overall height: 3.780 in. / 96.000 mm
- 8 lug holes with 6.508 in. / 165.300 mm bolt circle diameter
Product Details
Centric GCX Elemental Protection Disc Brake Rotors are built for front axle service on Nissan NV vans that need a vented rotor with OE-style dimensions and a floating disc mounting design. The fully coated construction helps protect non-friction surfaces from corrosion, while the smooth braking face supports even pad engagement. For buyers searching for a front brake rotor for a 2012-2021 Nissan NV1500, NV2500, or NV3500, part number 320.42110F provides a direct fit reference with the listed hub and bolt pattern dimensions.
The GCX Elemental Protection line focuses on corrosion-resistant surface treatment across the rotor and hat areas, making it a practical choice for daily-use commercial vans that see frequent stop-and-go braking. This rotor measures 14.173 inches in outside diameter, uses an 8-lug pattern, and is specified with no ABS tone ring and no bearings included.
Common Brake Issues This Rotor Can Address
- Brake pulsation caused by rotor wear or thickness variation
- Corrosion on exposed rotor surfaces and hat areas
- Reduced braking consistency from worn front rotors
- Noise or vibration linked to uneven rotor contact surfaces
- Service replacement for front brake rotor wear on Nissan NV vans
Installation Notes and Tips
Verify rotor dimensions, hub center diameter, bolt circle diameter, and lug count before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect brake pads and caliper hardware for wear before reassembly. After installation, follow the vehicle manufacturer’s brake bedding procedure to help establish proper pad-to-rotor contact.
Quality Assurance
Centric manufactures brake components for OE-style service applications, and the GCX Elemental Protection rotor line is specified with coated surfaces and application-matched dimensions for front brake service on the listed Nissan NV models. Part number 320.42110F is identified for 2012-2021 Nissan NV1500, NV2500, and NV3500 front fitment.
