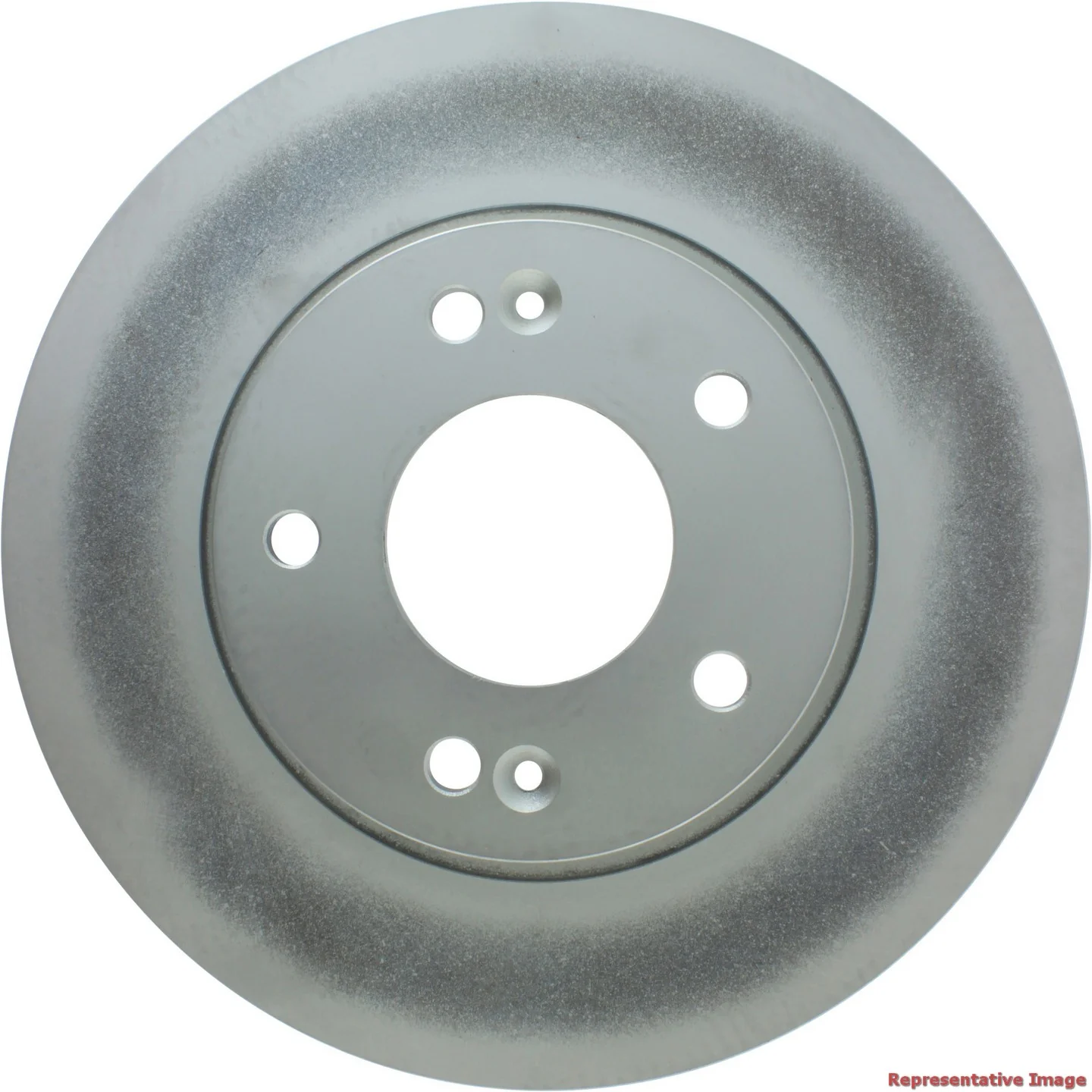

Centric 320.50024F Disc Brake Rotor - Front
Centric GCX Front Brake Rotor for Kia
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.50024F, is a front vented rotor built for select Kia compact models from 2010-2013. It combines a fully coated disc finish with a coated hat finish to help resist corrosion on exposed surfaces while maintaining a smooth braking surface.
Compatible with 2010-2013 Kia Forte, 2010-2013 Kia Forte Koup, 2012-2013 Kia Forte5, and 2010-2011 Kia Soul with 280mm front disc brakes, this Centric rotor is sized for direct front axle service. The 11.024-inch outside diameter, 1.024-inch nominal thickness, and straight vane design support consistent heat management in everyday driving.
Key Features
- Part number 320.50024F front disc brake rotor
- Fully coated disc finish with coated hat finish
- Vented rotor construction with straight vanes
- Smooth surface type for brake pad contact
- 5-lug pattern with 114.3 mm bolt circle
- 280 mm outside diameter for listed Kia applications
- Floating disc mounting design
Centric GCX Elemental Protection Line
The GCX Elemental Protection line focuses on corrosion-resistant rotor finishes for vehicles exposed to moisture, road salt, and seasonal weather changes. On this Centric GCX rotor, the coated hat and fully coated disc help protect non-friction surfaces while the smooth braking face remains ready for pad contact after proper break-in. If you are replacing worn front rotors on a Kia Forte, Forte Koup, Forte5, or Soul, part number 320.50024F provides the correct fitment details for the listed 280 mm front brake applications.
Common Problems This Rotor Can Address
- Front brake pulsation caused by rotor wear or thickness variation
- Rust buildup on exposed rotor surfaces
- Noise from uneven or worn braking surfaces
- Reduced braking consistency from overheated or fatigued rotors
- Service replacement for a damaged front rotor on listed Kia models
Installation Notes and Tips
Verify rotor diameter, center hole diameter, bolt circle, and front position before installation. This rotor is listed for front use only and does not include ABS tone ring or bearings. Clean the hub face thoroughly, inspect pads and caliper hardware, and follow proper bedding procedures after installation to help the new rotor and pads seat evenly.
Quality Assurance
Centric GCX rotors are built with application-specific dimensions and protective coatings to support consistent fitment and corrosion resistance in the listed vehicles. Part number 320.50024F is specified for the front axle applications shown above.
