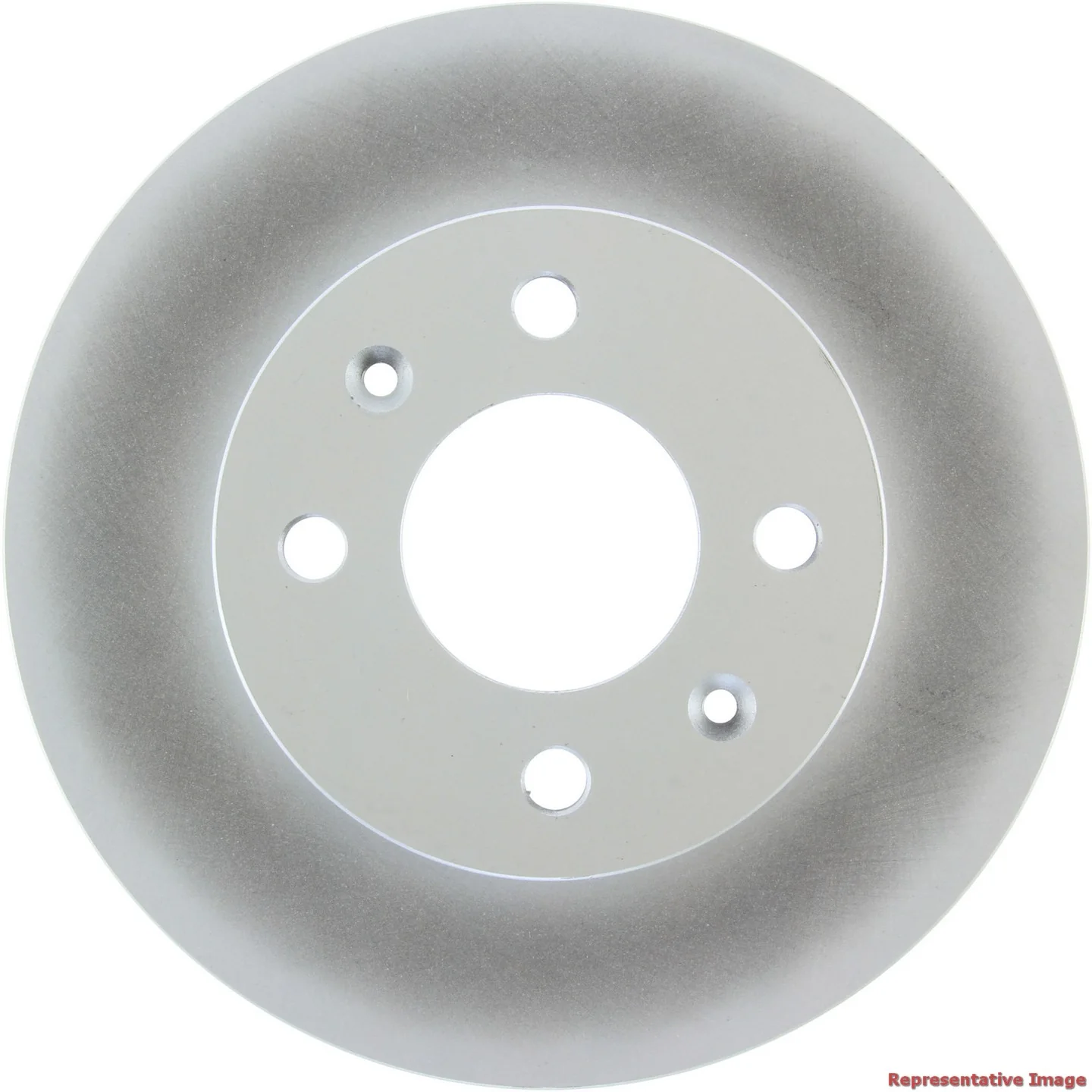

Centric 320.51017F Disc Brake Rotor - Front
Centric GCX Front Brake Rotor Overview
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.51017F, is a front vented rotor built for specific Hyundai Accent and Dodge Verna applications. It features a fully coated disc finish and coated hat finish to help protect exposed metal surfaces, while the smooth braking surface supports consistent pad contact.
Key Features
- Part number 320.51017F for front brake applications
- Fully coated disc finish with coated hat finish
- Vented rotor design with straight vane construction
- Smooth surface type for even pad engagement
- Outside diameter: 241.000 mm (9.488 in)
- Nominal thickness: 19.000 mm (0.748 in)
- Discard thickness: 17.000 mm (0.669 in)
- 4-lug pattern with 100.000 mm bolt circle diameter
- Center hole diameter: 62.200 mm
- Floating disc mounting with 2 miscellaneous holes
Product Details
Centric GCX Elemental Protection Disc Brake Rotors are built around corrosion-resistant coating coverage on the disc and hat areas, making them a practical choice for front brake service where exposed rotor surfaces are a concern. This rotor measures 52.000 mm in overall height and uses a vented, straight-vane layout to support heat management during repeated braking. The 241.000 mm outside diameter, 19.000 mm nominal thickness, and 17.000 mm discard thickness provide the dimensional reference needed for correct replacement selection. This part number 320.51017F is listed for 2002 Hyundai Accent front, 2003-2005 Hyundai Accent front, and 2004-2006 Dodge Verna front.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Rotor Helps Address
- Front brake rotor replacement for worn or below-spec rotors
- Brake pulsation caused by rotor wear or surface irregularity
- Corrosion on exposed rotor surfaces and hat area
- Brake noise related to uneven rotor contact surfaces
- Loss of braking consistency from heat-stressed front rotors
Installation Notes
Verify rotor diameter, center hole diameter, bolt circle, and thickness before installation. This rotor is for front position use on the listed Hyundai Accent and Dodge Verna applications, including 2002 Hyundai Accent from 03/12/2002, 2003-2005 Hyundai Accent, and 2004-2006 Dodge Verna. Inspect pads, calipers, and hub surfaces during brake service to confirm proper fit and braking performance. Part number 320.51017F should be matched to the vehicle’s exact front brake configuration before installation.
Quality Assurance
Centric GCX Elemental Protection rotors are engineered with coated surfaces and application-specific dimensions for direct replacement use on the listed vehicles. The fully coated construction and vented design support long-term service in front brake applications.
Original: $33.94
-65%$33.94
$11.88Centric 320.51017F Disc Brake Rotor - Front
