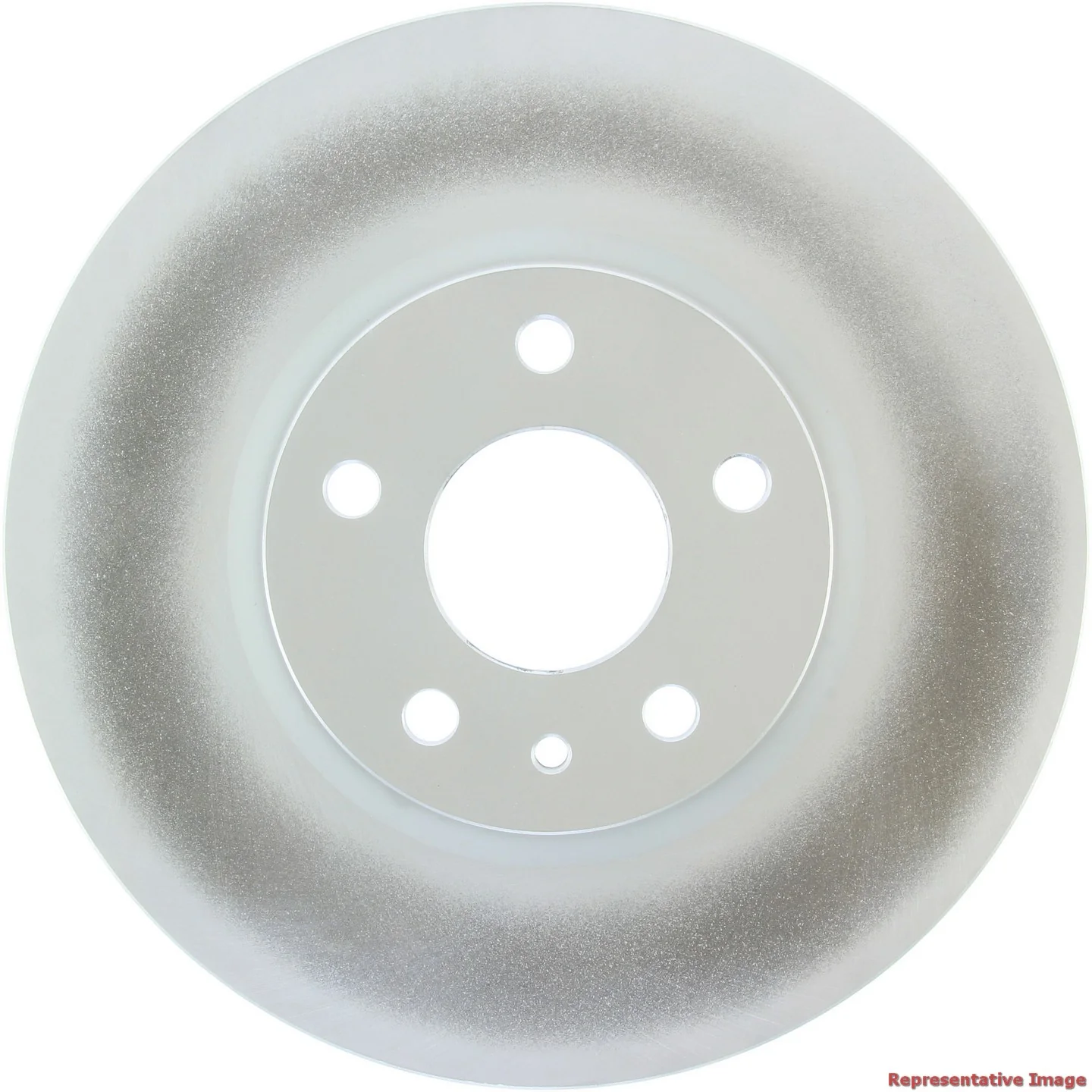

Centric 320.61104F Disc Brake Rotor - Front
Front Brake Rotor for Fusion and MKZ
Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, part number 320.61104F, are built for front axle service on select Ford Fusion and Lincoln MKZ applications. This vented disc brake rotor uses a fully coated finish and coated hat to help protect exposed surfaces while maintaining a smooth braking surface.
Compatible With 2013-2020 Ford Fusion, front and 2013-2016 Lincoln MKZ, front, this rotor is sized for a 300.000 mm outside diameter with a 28.000 mm nominal thickness and 26.500 mm discard thickness. The straight vane design supports heat management, while the floating disc mounting and 5-lug pattern help match the original fitment profile.
Key Features
- Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
- Part number 320.61104F
- Fully coated disc finish with coated hat finish
- Vented rotor with straight vane style
- Smooth surface type for front brake service
- 300.000 mm outside diameter and 51.100 mm overall height
- 5 lug holes with 108.000 mm bolt circle diameter
- Floating disc mounting design
- ABS tone ring not included
- Bearings not included
Product Details
The Centric GCX Elemental Protection line focuses on corrosion-resistant rotor surfaces for everyday brake service. On this application, the 320.61104F rotor is specified for the front position on Ford Fusion and Lincoln MKZ models, with a center hole diameter of 63.600 mm and a hat ID of 139.900 mm. The vented construction and straight vane layout support consistent airflow through the rotor, while the fully coated finish helps protect non-friction surfaces from environmental exposure.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Rotor Can Address
- Front brake pulsation caused by rotor wear or thickness variation
- Corrosion on exposed rotor surfaces and hat area
- Reduced braking consistency from worn or heat-affected rotors
- Noise or vibration associated with damaged front rotors
- Service replacement needs on Fusion and MKZ front brake systems
Installation Notes and Tips
Verify rotor dimensions, hub fit, and lug pattern before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition during brake service. After installation, follow the vehicle manufacturer’s brake bedding procedure to help establish even pad transfer on the new rotor surface.
Quality Assurance
Centric GCX Elemental Protection rotors are engineered with coated surfaces and application-specific dimensions for front brake service on the listed Ford Fusion and Lincoln MKZ model years. Part number 320.61104F is built to match the stated fitment and dimensional requirements for these vehicles.
