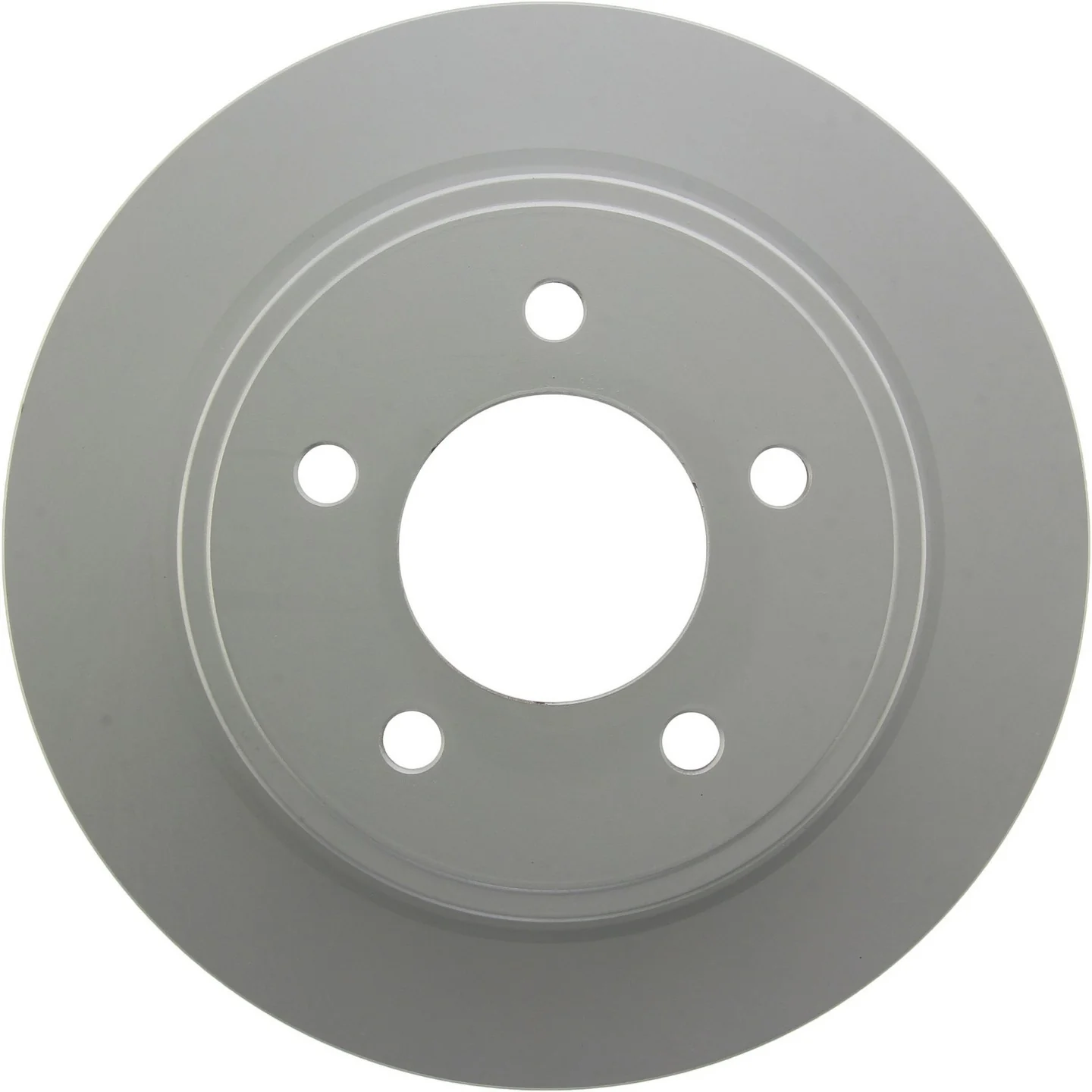

Centric 320.63057F Disc Brake Rotor - Rear
Centric GCX Rear Brake Rotor for Pacifica
The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating is built for OE-style braking performance with added resistance to rust and corrosion. This rear rotor is engineered for 2004-2008 Chrysler Pacifica applications and uses a fully coated finish to help maintain appearance and durability over time.
Part number 320.63057F is part of Centric’s GCX FC rotor line, which uses application-specific coating patterns and metallurgy matched to OEM-style requirements. For Chrysler Pacifica rear brake service, 320.63057F provides a direct-fit rotor option with a smooth surface and coated hat and non-mating surfaces.
Key Features
- Fits 2004-2008 Chrysler Pacifica, rear
- Part number 320.63057F
- Fully coated disc finish with coated hat
- Smooth surface type for brake pad contact
- Solid rotor design
- Outside diameter: 12.283 in. / 312.000 mm
- Nominal thickness: 0.551 in. / 14.000 mm
- Discard thickness: 0.492 in. / 12.500 mm
- 5-lug bolt pattern with 127 mm bolt circle diameter
- Center hole diameter: 3.228 in. / 82.000 mm
Product Details
Centric GCX rotors are designed to match OE performance while adding protection on exposed surfaces. The full coating helps resist rust on the hat and non-mating areas, while the rotor metallurgy is selected to align with OEM-style vehicle requirements. This makes 320.63057F a practical choice for Chrysler Pacifica rear brake rotor replacement when you want a clean finish and consistent fitment.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Reasons to Replace
- Rear brake pulsation or vibration during stopping
- Visible rust or corrosion on the rotor surface or hat
- Brake noise caused by uneven rotor wear
- Reduced braking consistency from worn rotor thickness
- Service replacement for a 2004-2008 Chrysler Pacifica rear brake rotor
Installation Notes
Verify rotor dimensions, hub fit, and rear position before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal pulsation. Always inspect brake pads, caliper hardware, and wheel bearings during rotor service, and follow the vehicle manufacturer’s torque specifications.
Quality Assurance
Centric designs the GCX line to support OE-style fit and corrosion protection using application-specific coating patterns and OEM-matched metallurgy. Part number 320.63057F is built for 2004-2008 Chrysler Pacifica rear brake service with attention to dimensional accuracy and surface protection.
