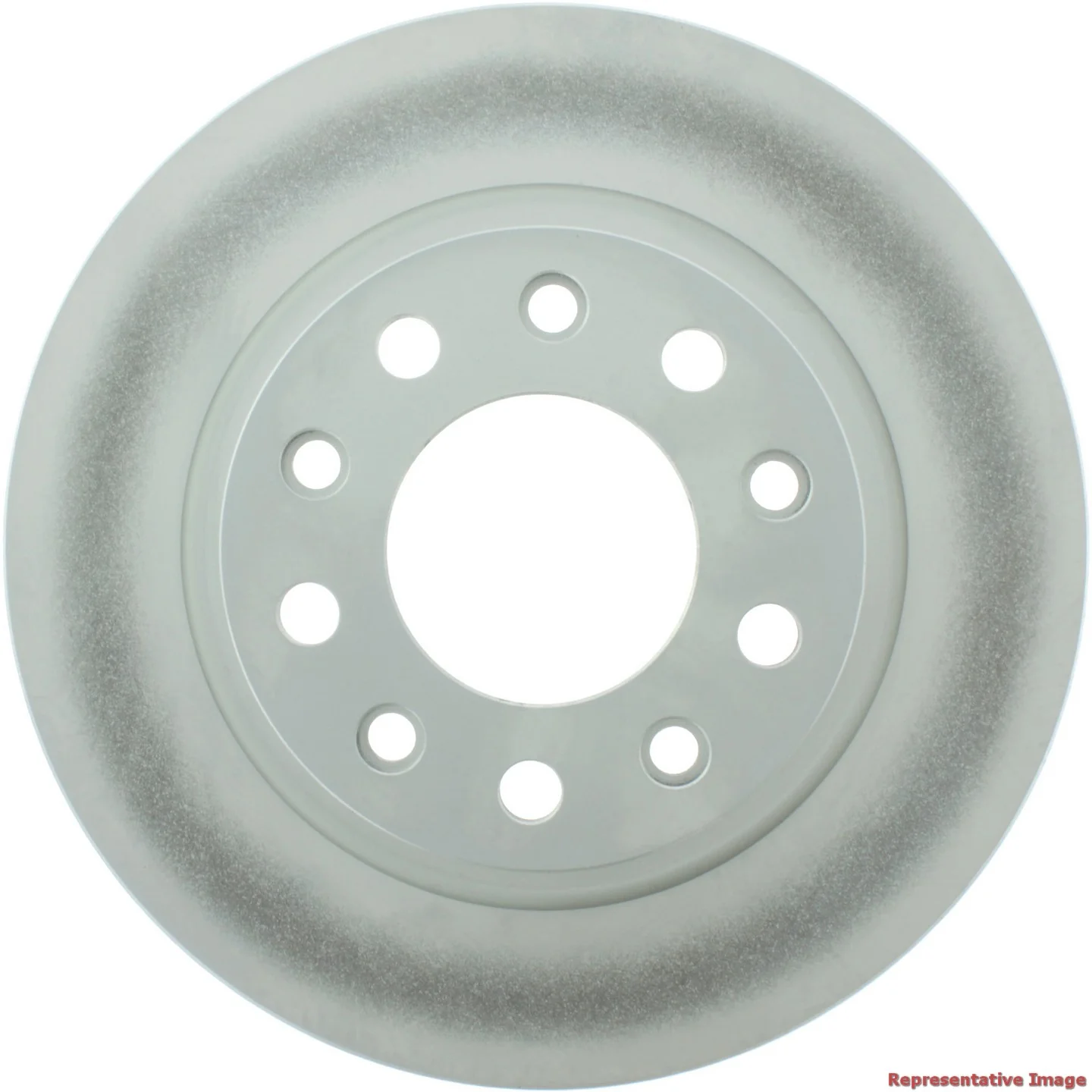

Centric 320.63077F Disc Brake Rotor - Rear
Rear Brake Rotor for Dodge Dart
Centric GCX Elemental Protection Disc Brake Rotor 320.63077F is a rear solid rotor built for 2013-2016 Dodge Dart applications. It features a fully coated disc finish and coated hat to help resist corrosion on exposed surfaces while maintaining a smooth braking surface.
For drivers searching for a rear brake rotor for 2013-2016 Dodge Dart, this Centric GCX Elemental Protection Disc Brake Rotor - Full Coating is built around the listed OE-style dimensions and mounting layout. The 320.63077F part number is a direct reference for shoppers comparing rear rotor replacement options for the Dodge Dart.
Key Features
- Fits 2013-2016 Dodge Dart, rear
- Part number: 320.63077F
- Fully coated disc finish with coated hat finish
- Solid rotor design with smooth surface type
- Outside diameter: 264.000 mm (10.394 in)
- Nominal thickness: 10.000 mm (0.394 in)
- Discard thickness: 8.000 mm (0.315 in)
- 5-lug pattern with 110.000 mm bolt circle diameter
- Center hole diameter: 70.000 mm
- Overall height: 40.700 mm (1.602 in)
Product Details
Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are built for corrosion resistance on the rotor hat and non-friction surfaces, while the smooth braking face supports consistent pad contact. This rear rotor for Dodge Dart applications uses a floating disc mounting design and a solid rotor construction, making it a straightforward replacement for vehicles that match the listed dimensions and fitment. The 320.63077F rotor is specified for 2013-2016 Dodge Dart rear brake service and is sized to the listed center hole, bolt circle, and lug-hole dimensions.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Rotor Can Address
- Rear brake pulsation caused by rotor wear or uneven friction surfaces
- Corrosion on exposed rotor surfaces and hat area
- Reduced braking consistency from a worn or below-spec rotor
- Noise related to rotor surface condition
- Fitment issues when replacing a rear rotor with the correct OE-style dimensions
Installation Notes and Tips
Verify rotor dimensions, hub fit, and lug pattern before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect brake pads and caliper hardware for wear before completing the repair. After installation, follow the vehicle manufacturer’s brake bedding procedure to help establish even pad transfer on the new rotor.
Quality Assurance
Centric GCX Elemental Protection rotors are engineered with coated surfaces to help protect against corrosion on non-friction areas while maintaining the specified braking geometry. Part number 320.63077F is listed for 2013-2016 Dodge Dart rear brake applications.
