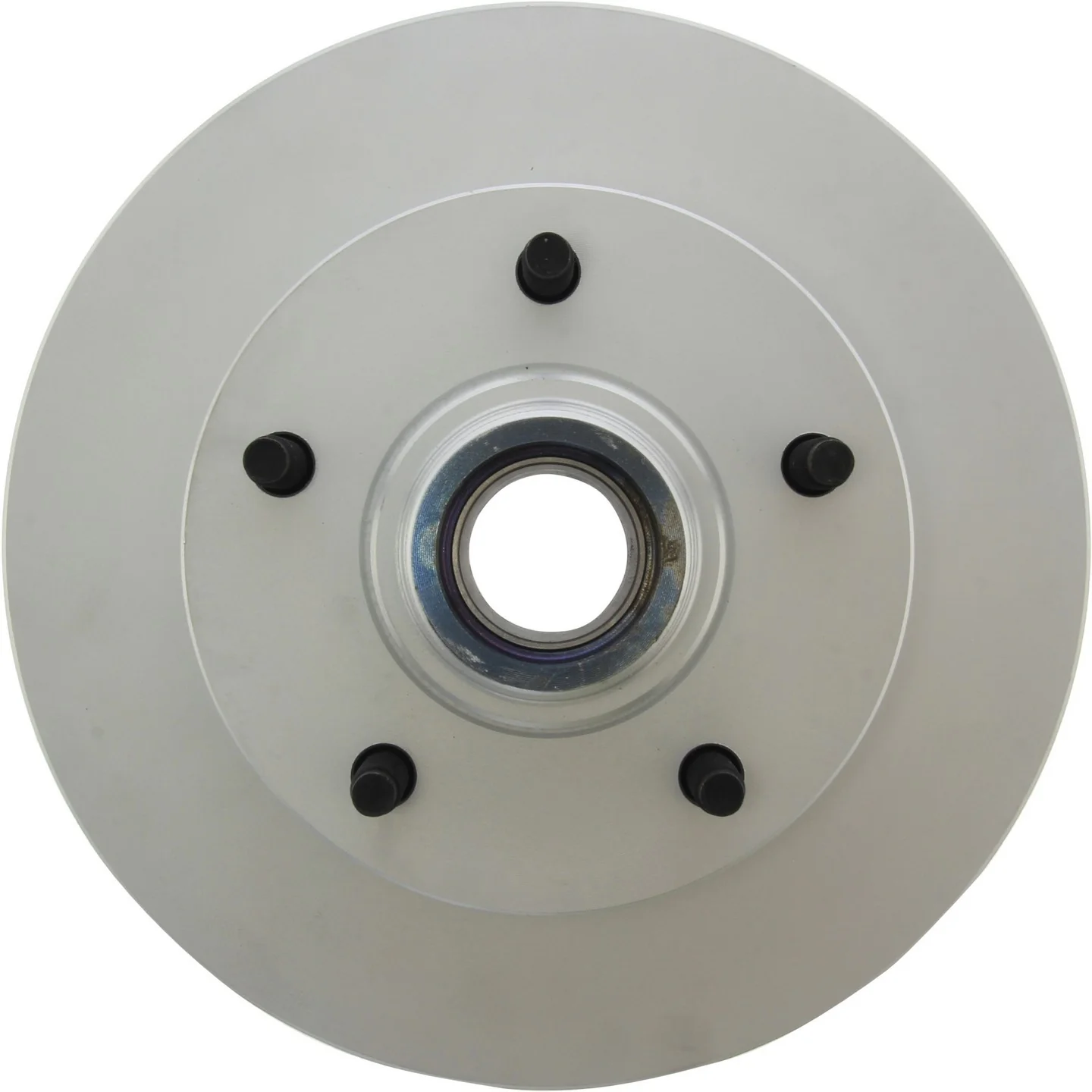

Centric 320.65040F Disc Brake Rotor - Front
Centric GCX Front Brake Rotor for Ford E-150
Centric GCX Elemental Protection Disc Brake Rotor, part number 320.65040F, is built for front brake service on select Ford E-150 applications. It combines OE-style fitment with a fully coated finish to help resist rust on exposed surfaces while maintaining the braking surface needed for consistent pad contact.
The GCX FC rotor line is application-specific, using Centric’s coating pattern and metallurgy choices to match the vehicle’s original brake requirements. For Ford E-150 and Ford E-150 Econoline front brake repair, this rotor is a direct replacement option focused on corrosion protection and OE performance characteristics.
Key Features
- Part number 320.65040F
- Fits front brake applications on select Ford E-150, Ford E-150 Club Wagon, Ford E-150 Econoline, and Ford E-150 Econoline Club Wagon models
- Fully coated disc finish with coated hat for improved rust resistance on non-mating surfaces
- Vented rotor design with smooth surface type
- ABS tone ring included
- Hub-and-rotor mounting style
- Outside diameter: 297.4 mm (11.709 in)
- Nominal thickness: 26.0 mm (1.024 in)
- Discard thickness: 24.45 mm (0.963 in)
- 5-lug pattern with 139.7 mm (5.500 in) bolt circle
Product Details
Centric GCX rotors are engineered to align with OE brake performance while adding protection against corrosion on the hat and other non-mating surfaces. This rotor uses Centric’s RS200 coating and an application-specific metallurgy profile to support proper pad interaction and long-term appearance. The 320.65040F is a front vented disc brake rotor for 1994-2003 Ford E-150 and related van applications, including 2003 Ford E-150 and 2003 Ford E-150 Club Wagon, plus 1994-2002 Ford E-150 Econoline and Ford E-150 Econoline Club Wagon.
This part cross-references Raybestos Brakes (e.g., 66455FZN) for the same application.
What This Rotor Helps Address
- Front brake rotor rust on exposed surfaces
- Brake pulsation caused by worn or below-spec rotors
- Reduced braking consistency from rotor wear
- Fitment issues when replacing OE-style front rotors on Ford E-150 vans
- Corrosion-related appearance problems on the brake hat and outer surfaces
Installation Notes and Tips
Verify rotor dimensions, hub fitment, and bolt pattern before installation. This rotor is for front use and is designed for hub-and-rotor mounting on the listed Ford E-150 applications. Inspect pads, calipers, and wheel bearings during brake service, and confirm the ABS tone ring orientation matches the vehicle setup. Clean the rotor friction surfaces before installation to remove any protective residue.
Quality Assurance
Centric designs the GCX line to match OE performance targets and uses coated non-mating surfaces to improve corrosion resistance over time. The rotor metallurgy is selected to align with the original vehicle brake profile for the listed Ford E-150 fitments.
