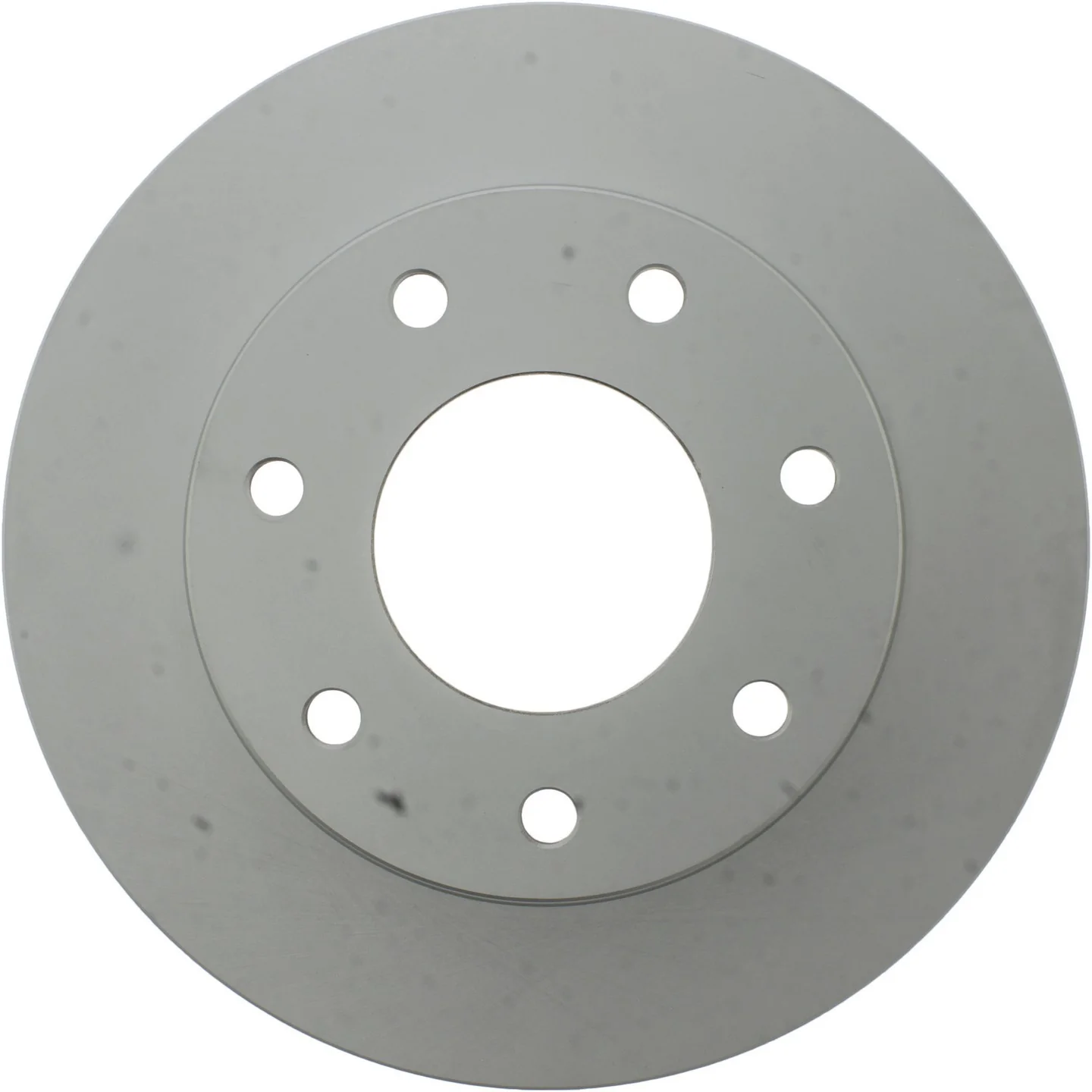

Centric 320.65062F Disc Brake Rotor - Front
Centric GCX Front Brake Rotor Overview
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.65062F, is a front vented rotor built for OE-style braking performance and corrosion resistance. It is fully coated on non-mating surfaces to help maintain a cleaner appearance and longer service life on the vehicle.
Compatible With 1997-2004 Ford F-150, Ford F-150 Heritage, Ford F-250, and Ford F-250 HD front brake applications listed below, this rotor is engineered around vehicle-specific metallurgy and coating patterns for a precise replacement fit.
Key Features
- Part number 320.65062F
- Fully coated disc finish with coated hat finish
- Vented rotor design with smooth surface type
- Outside diameter: 12.118 in. / 307.800 mm
- Nominal thickness: 1.169 in. / 29.700 mm
- Discard thickness: 1.091 in. / 27.700 mm
- 7-lug bolt pattern with 5.906 in. / 150.000 mm bolt circle diameter
- Floating disc mounting and pillar vane style
- ABS tone ring not included
- Bearings not included
Centric GCX Elemental Protection Line
Centric GCX Elemental Protection Disc Brake Rotors are built to match OE performance while adding corrosion protection on exposed surfaces. The GCX FC full-coating design uses Centric’s RS200 finish on non-mating areas, and the application-specific coating pattern is matched to brake pad friction characteristics. Centric also uses vehicle-matched rotor metallurgy, including enhanced carbon and high carbon alloy formulations, to align with OEM-style requirements.
Fitment Details
- Fits 2004 Ford F-150 Heritage, front, 7 lug; to 11/04
- Fits 2001-2003 Ford F-150, front, 7 lug
- Fits 2000 Ford F-150, front, 7 lug; fr 12/99
- Fits 1997-1999 Ford F-250, front, 7 lug
- Fits 1997 Ford F-250 HD, front, 7 lug
Common Replacement Uses
- Front rotor replacement for worn or warped Ford F-150 brake rotors
- Corrosion-prone rotor replacement on Ford F-250 front brake systems
- Service repair for brake pulsation or uneven braking feel
- Replacement for rotors with scoring, rust buildup, or reduced braking consistency
- OE-style front brake service for 7-lug Ford truck applications
Installation Notes and Tips
Verify rotor diameter, thickness, hub center bore, and 7-lug bolt pattern before installation. Clean the hub mounting surface thoroughly so the floating rotor seats evenly, and inspect pads and calipers at the same time to help prevent uneven wear. This part number 320.65062F is a front rotor only and should be matched to the listed vehicle configuration.
Quality Assurance
Centric designs GCX rotors to align with OEM-style metallurgy and application-specific coating coverage for consistent fit and corrosion protection. Part number 320.65062F is engineered for the listed Ford F-150, Ford F-150 Heritage, Ford F-250, and Ford F-250 HD front applications.
