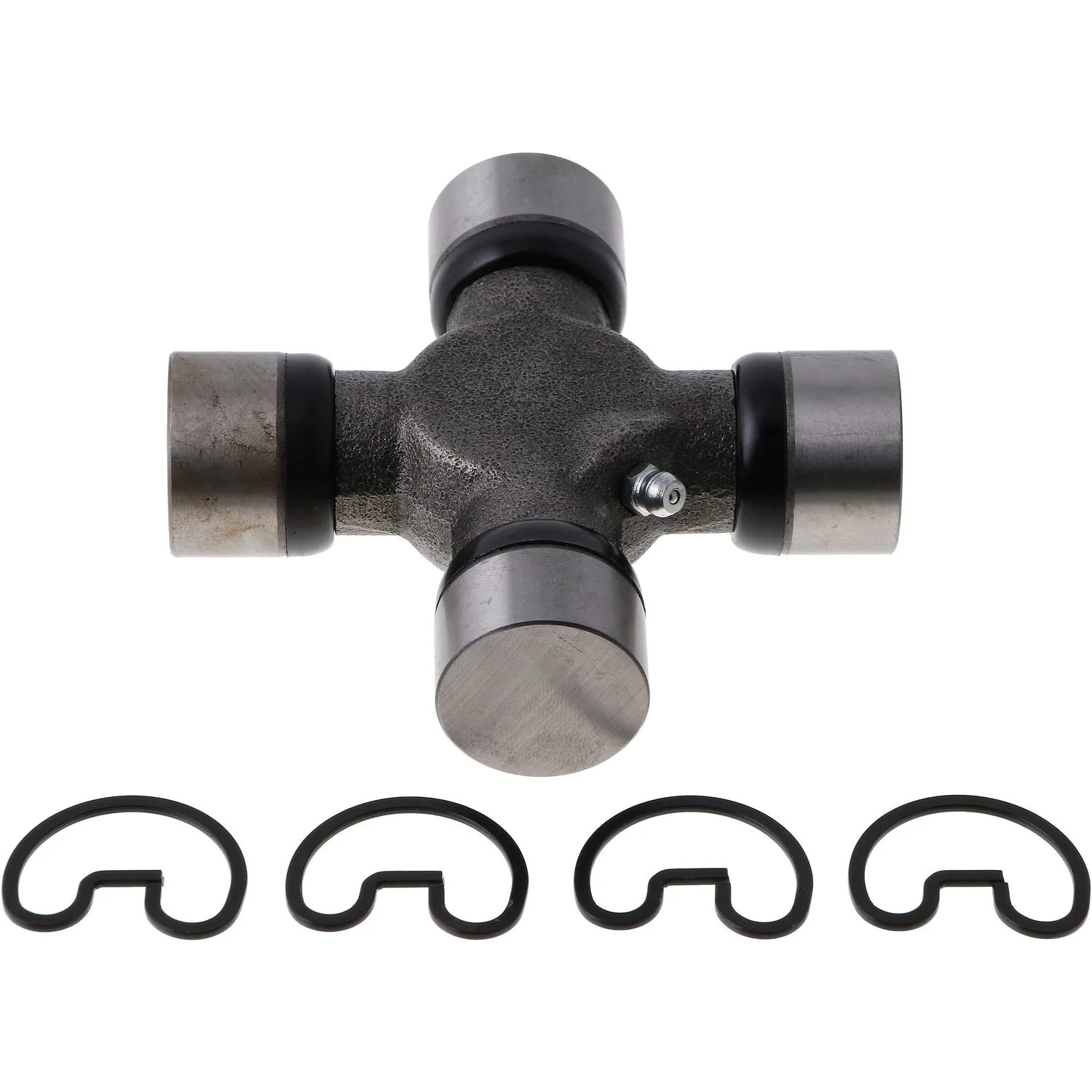

Dana Spicer 15-3207X Universal Joint - Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing or Rear Driveshaft at Transmission
Dana Spicer 15-3207X Universal Joint - Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing or Rear Driveshaft at Transmission
Dana Spicer SVL Universal Joint 15-3207X
The Dana Spicer SVL 15-3207X is a greaseable universal joint built for rear driveshaft service on a wide range of heavy-duty trucks and vans. It is engineered around a 1.188-inch bearing cap diameter, 4.178-inch outside snap ring dimension, and OSR-style construction for applications that require a precise driveline match.
SVL is Dana’s value-focused aftermarket line, developed and tested for dependable performance in repair and maintenance work. This part number, 15-3207X, is a direct-fit option for many Chevrolet Silverado, GMC Sierra, Ram, and Nissan NV rear driveshaft applications.
Key Features
- 1.188-inch bearing cap diameter on both sides
- 4.178-inch outside snap ring dimension
- OSR-style universal joint with round bearing caps
- Greaseable design with grease zerk included
- Cross-body grease fitting location for service access
- External snap rings included
- Model number AAM 1415 / OEM series AAM 1415
Detailed Description
The Dana Spicer SVL 15-3207X universal joint is designed for rear driveshaft locations at the transmission, rear axle, and support bearing, depending on vehicle configuration. It is a practical replacement for driveline service where the original joint uses the AAM 1415 series layout and the specified snap ring and cap dimensions. The part number 15-3207X also cross-references Spicer 5-3207X for the same application.
Compatible With 2001-2019 Chevrolet Silverado 2500 HD, rear driveshaft at transmission, rear axle, or support bearing; 2001-2006 Chevrolet Silverado 3500, rear driveshaft at transmission, rear axle, or support bearing; 2007-2013 Chevrolet Silverado 3500 HD and Silverado 3500 Classic, rear driveshaft at transmission; 2001-2019 GMC Sierra 2500 HD, rear driveshaft at transmission, rear axle, or support bearing; 2001-2006 GMC Sierra 3500 and 2007-2013 GMC Sierra 3500 Classic, rear driveshaft at transmission, rear axle, or support bearing; 2003-2018 Ram 2500 and Ram 3500, rear driveshaft at transmission, rear axle, or support bearing; and 2012-2019 Nissan NV2500 and NV3500, rear driveshaft at transmission.
What It Helps Address
- Driveline vibration from worn U-joint bearings
- Clunking or driveline lash during acceleration and deceleration
- Need for a greaseable replacement during driveline service
- Fitment issues on AAM 1415 series rear driveshaft applications
- Wear at the transmission end, rear axle end, or support bearing location
Installation Notes and Tips
Verify the bearing cap diameter, outside snap ring dimension, and driveshaft configuration before installation. This joint is specified for rear driveshaft applications with 1.188-inch caps and a 4.178-inch outside snap ring dimension, so matching the original measurements is essential for proper fit. Confirm whether the vehicle uses a one-piece or two-piece driveshaft and whether the service location is at the transmission, rear axle, or support bearing.
For best service life, pack and lubricate the joint according to the vehicle’s maintenance schedule and inspect the yokes, snap ring grooves, and bearing surfaces during replacement.
Quality Assurance
SVL products are aftermarket engineered and backed by Dana, a trusted driveline supplier. This universal joint includes a six-month or 50,000-mile warranty.
