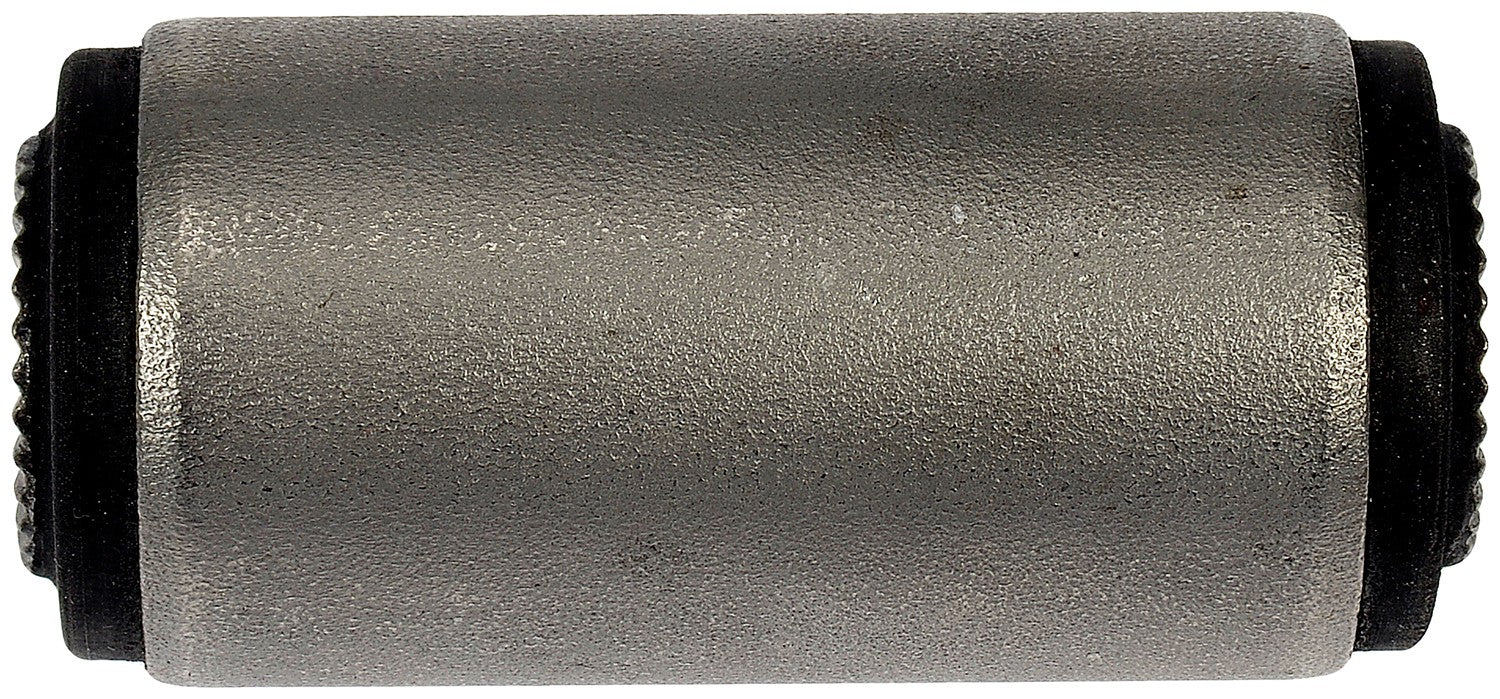

Dorman 541-594 Leaf Spring Shackle Bushing
Dorman 541-594 Leaf Spring Shackle Bushing
Dorman 541-594 is a rubber leaf spring shackle bushing made for direct replacement on select Ford suspension applications. It is precision-engineered and tested to match the original equipment function on vehicles such as the Ford Bronco, Ford F-250, and Ford F-350.
Key Features
- Rubber construction for standard replacement service
- Black finish
- Inside diameter: 16.1 mm
- Outside diameter: 32 mm
- Width: 32 mm
- Length: 69.5 mm
- OE-style replacement for rear leaf spring shackle locations
- Cross-reference: Delphi TD4749W
Detailed Description
This Dorman 541-594 leaf spring shackle bushing is built for suspension repair where the original bushing has worn, cracked, or lost its shape. The rubber material helps restore the connection point between the leaf spring and shackle, supporting proper rear suspension movement on classic Ford truck and Bronco applications. Compatible With 1963-1979 Ford F-250, 1965-1976 Ford F-350, and 1966-1977 Ford Bronco rear suspension positions listed in the fitment data, this standard replacement bushing is sized for the specified OE-style mounting dimensions.
Use Dorman 541-594 when servicing rear leaf spring shackle bushings on Ford Bronco, Ford F-250, and Ford F-350 models that require the listed dimensions and positions. The part number 541-594 is also referenced by K200923 and RB74 for the same application.
What It Helps Fix
- Rear suspension clunking from worn shackle bushings
- Excessive leaf spring movement at the mounting point
- Loose or deteriorated rubber in the rear suspension
- Ride quality issues caused by bushing wear
- Incorrect shackle-to-spring fit from aged OE parts
Installation Notes and Tips
Verify the vehicle year, model, and rear suspension position before installation. Compare the inside diameter, outside diameter, width, and length to the removed part to confirm fitment. This bushing is supplied without bolts or mounting hardware, so reuse or source the required hardware separately as needed. Proper inspection of the shackle, spring eye, and surrounding suspension components is recommended during service.
Quality Assurance
Dorman tests this replacement bushing for reliable OE-style function on the specified vehicles. The part is engineered as a standard replacement for select Ford rear suspension applications.
