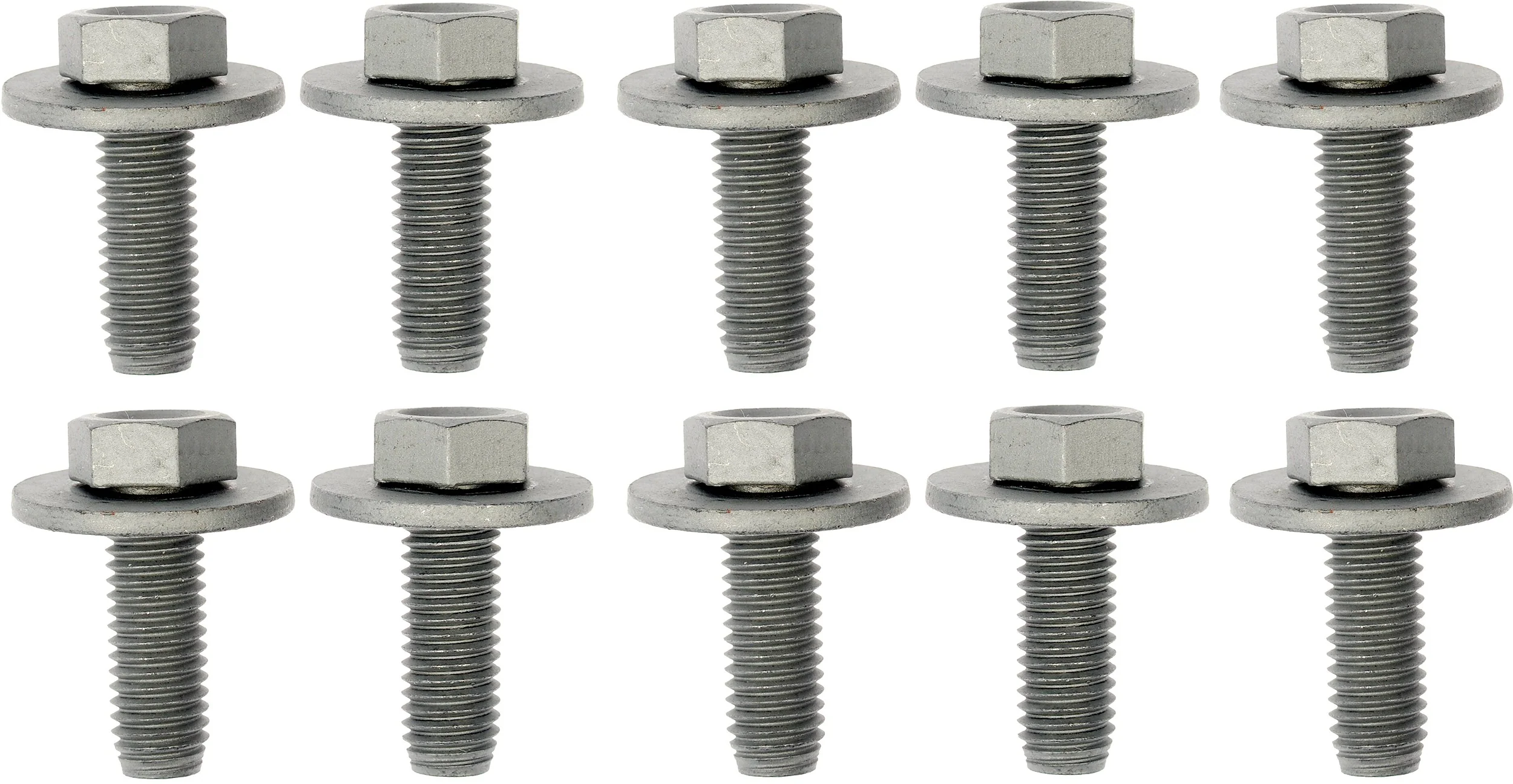

Dorman 700-089 Engine Splash Shield Hardware - Lower or Lower Front
Dorman Engine Splash Shield Hardware
Dorman 700-089 is engine splash shield hardware built for lower underbody applications on a wide range of Chevrolet, GMC, Cadillac, and Hummer vehicles. These metric hex washer bolts use durable steel construction with a corrosion-tested Geomet finish to help maintain strength and service life in demanding road conditions.
Use Dorman 700-089 when replacing worn or missing splash shield fasteners on vehicles such as the Chevrolet Silverado, GMC Sierra, and Cadillac Escalade. The hex head, attached washer, and coarse M10-1.5 thread make this a direct-fit hardware solution for lower splash shield mounting points.
- Steel construction for strength and durability
- Corrosion-tested finish for long-term service
- Metric M10-1.5 coarse thread
- Hex washer head with attached washer
- 15 mm hex head tool size
- Standard replacement hardware for lower splash shield locations
Detailed Product Overview
This engine splash shield bolt is designed around common OE-style dimensions: 10 mm thread diameter, 30 mm thread length, 36 mm overall length, and a right-hand thread direction. The Grade 8.8 bolt specification and silver Geomet coating support dependable fastening performance where underbody panels and splash shields need secure retention. Dorman 700-089 also cross-references OE part numbers 11517817 and 11518341 for the same application.
Compatible With many lower and lower front splash shield mounting points on 1999-2023 Chevrolet and GMC trucks and SUVs, including Silverado, Sierra, Tahoe, Yukon, Suburban, Avalanche, Colorado, Canyon, Express, Savana, Escalade, and Hummer H2 applications.
Common Problems This Hardware Can Address
- Missing or damaged engine splash shield fasteners
- Loose lower underbody panels
- Corroded original splash shield bolts
- Improper retention at lower front shield mounting points
- Noise or movement from unsecured splash shields
Installation Notes and Tips
Verify thread size, head size, and mounting location before installation. This hardware uses a 15 mm hex head and M10-1.5 coarse metric threads with a clockwise thread direction. Confirm the lower or lower front position on the vehicle before replacing existing fasteners, especially on Chevrolet Silverado 1500, GMC Sierra 1500, and Cadillac Escalade models.
Quality Assurance
Dorman manufactures these bolts using durable materials and corrosion-tested construction to support required strength and longevity in underbody service.
