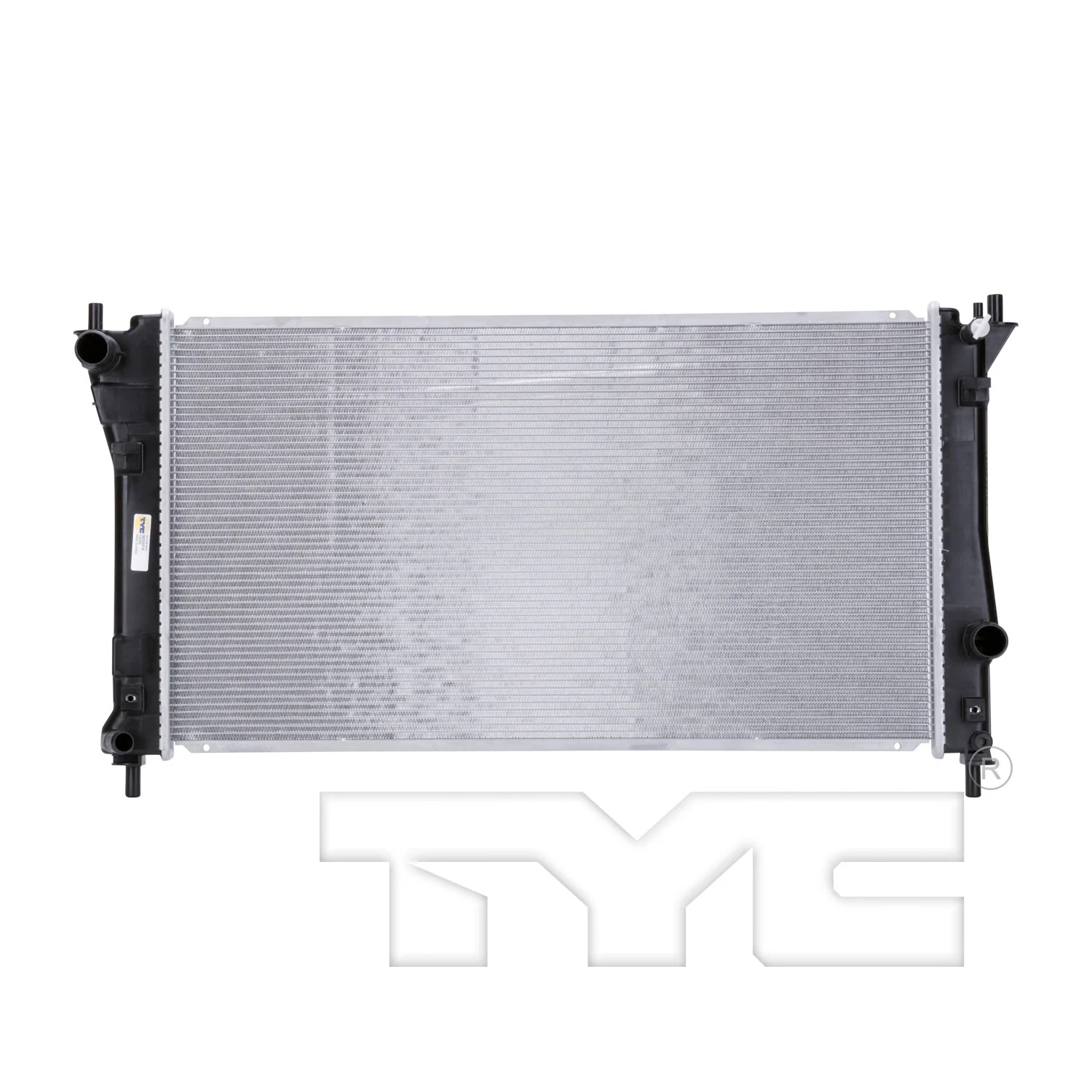

TYC 13220 Radiator
TYC Radiator for Mazda 5
The TYC Radiator 13220 is a direct-fit cooling system replacement for 2012-2017 Mazda 5 models. Built with an aluminum core and crossflow design, it supports efficient coolant transfer for everyday driving and routine maintenance replacement.
Key Features
- Aluminum core construction for lightweight heat dissipation
- Crossflow flow configuration for consistent coolant movement
- Single-row design with 56 tubes and 57 total fin rows
- Hose clamp inlet and outlet connections, both 1.26 in.
- Core dimensions: 26.61 in. length, 14.53 in. height, 0.63 in. thickness
- TYC Radiator line replacement for Mazda 5 cooling system service
Detailed Description
TYC part number 13220 is engineered for 2012-2017 Mazda 5 applications and matches the vehicle’s radiator layout with a crossflow aluminum core. The radiator uses hose clamp inlet and outlet connections and is built without an engine oil cooler or transmission oil cooler. With a 1-row core, 16x1.5 tube sizing, and fin density designed for heat exchange, this radiator supports stable coolant flow through the engine cooling circuit. The TYC Radiator line focuses on OE-style replacement fitment for Mazda 5 cooling repairs, making TYC 13220 a practical choice when replacing a leaking, clogged, or damaged radiator.
This part cross-references DENSO 221-9267 and Spectra Premium CU13220 for the same application.
Used For
- Replacing a leaking radiator in a Mazda 5
- Restoring coolant circulation after internal clogging
- Addressing overheating caused by damaged radiator tubes or fins
- Repairing corrosion-related cooling system failure
- Returning the vehicle to proper engine temperature control
Installation Notes and Tips
Fits 2012-2017 Mazda 5, N/A. Confirm inlet and outlet hose diameter, mounting points, and surrounding cooling components before installation. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant specification after installation. Verify there is no debris or damage in the fan shroud and adjacent cooling components.
Quality Assurance
TYC manufactures replacement cooling components with application-specific fitment and OE-style construction details. Part number 13220 is built for the listed Mazda 5 applications and follows the dimensional and connection specifications shown above.
