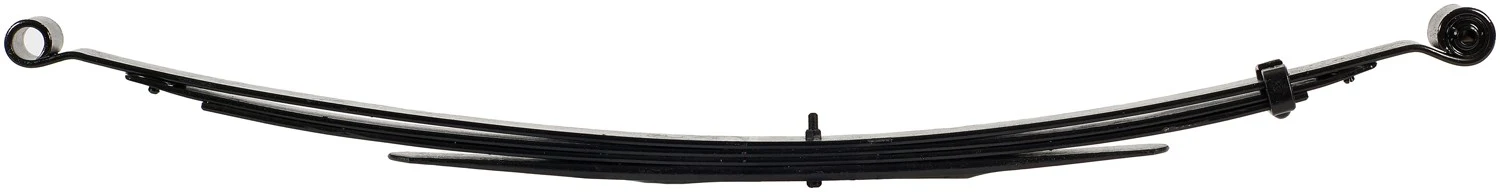

Dorman 43-817 Leaf Spring Assembly - Rear
Dorman 43-817 Rear Leaf Spring Assembly
Dorman 43-817 is a rear leaf spring assembly built from steel for suspension service on select Ford Ranger models. It restores load support at the rear axle and helps maintain ride height, payload control, and suspension stability on the 1983-1985 Ford Ranger.
Key Features
- Steel leaf spring construction for rear suspension service
- Rear axle application for Ford Ranger fitment
- Standard suspension grade replacement
- 4-leaf design with 2.5 in. leaf width
- Load rate: 1350
- Black bushings included
- End 1 and End 2 use Berlin eye attachment type
- Pack thickness: 1.584 in.; arch length: 4.625 in.
Fitment and Application
Compatible with 1984-1985 Ford Ranger, rear. Fits 1983 Ford Ranger, rear, with notes for 3 leaf / 1 leaf = 4 leaf spring, 1.5625 in. pack thickness, 1,350 lb. average capacity, from 1/83. This part cross-references Ford OE numbers E4TA5560AA and E4TZ5560C for the same application.
Detailed Description
Leaf springs carry vehicle weight and payload while helping the rear suspension keep consistent geometry under load. Dorman 43-817 is a standard replacement rear leaf spring assembly for Ford Ranger applications, using a steel spring pack with black bushings and Berlin eye ends for direct suspension service. The part number 43-817 is listed for 1983-1985 Ford Ranger rear suspension use, making it a focused choice when replacing a worn or sagging rear spring on these trucks.
What It Helps Address
- Rear sag from a fatigued or flattened leaf spring
- Reduced payload support at the rear axle
- Uneven ride height on a Ford Ranger
- Excessive rear suspension movement under load
- Noise or looseness related to worn spring bushings
Installation Notes and Tips
Verify axle orientation, spring length, arch, pack thickness, and bushing style before installation. Confirm the vehicle build date for 1983 Ford Ranger applications, since the listed fitment begins from 1/83. Inspect spring mounts, shackles, and related suspension hardware for wear before replacing the leaf spring assembly.
Quality Assurance
Dorman suspension components are built for standard replacement service and are specified here with material, dimensions, and fitment details to support accurate selection. Use the listed vehicle data and part number 43-817 to confirm application before installation.
