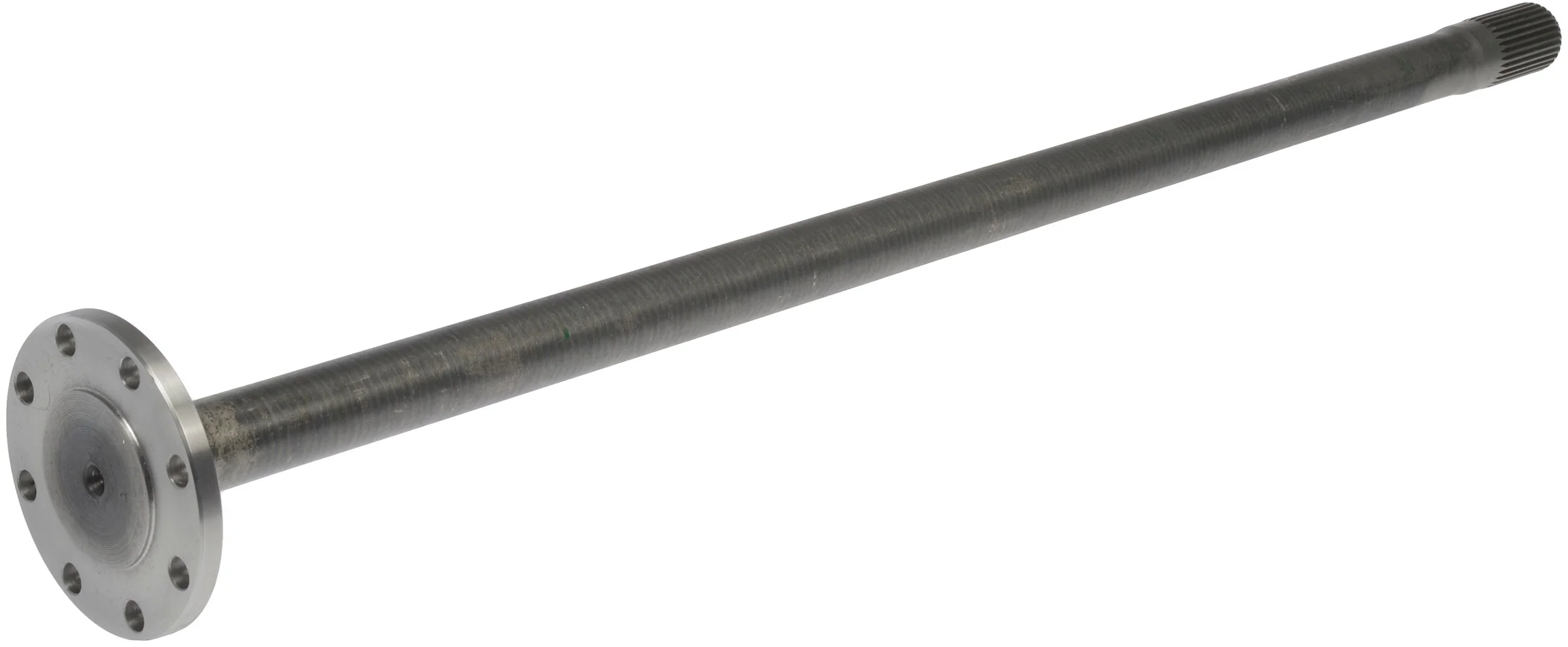

Dorman 630-009 Drive Axle Shaft - Rear or Rear Right
Dorman 630-009 Rear Axle Shaft for Ram and Dodge
Dorman 630-009 is a direct replacement drive axle shaft for select Ram 2500 and Dodge Ram 1500/2500 rear applications with the 10.50 rear axle and DRW configuration. It is built to replace a damaged axle shaft or one affected by worn bearings, using application-specific installation components for the listed vehicles.
Key Features
- Direct replacement axle shaft for rear differential service
- Fits select 2003-2013 Dodge Ram 2500 and Ram 2500 applications, plus 2006-2008 Dodge Ram 1500 DRW rear
- Carbon steel shaft construction with galvanized finish
- Rear differential design with 30 inboard splines
- 944 mm shaft length, 34.5 mm shaft diameter, and 8 mounting holes
- Wheel bolt pattern size: 100.5 mm
- Interchange reference: 5086775AB
Detailed Description
This Dorman drive axle shaft is engineered for rear axle service on Ram and Dodge trucks that use the DRW 10.50 rear axle setup. The shaft measures 944 mm in length and uses carbon steel construction with a galvanized finish for added corrosion resistance in normal service conditions. It is specified with 30 inboard splines, 8 mounting holes, and no included axle nut, bearing, seal, ABS tone ring, or wheel studs.
Fits 2011-2013 Ram 2500, rear right, w/Sales Code DRW (10.50 Rear Axle). Fits 2003-2010 Dodge Ram 2500, rear, w/Sales Code DRW (10.50 Rear Axle). Fits 2006-2008 Dodge Ram 1500, rear, w/Sales Code DRW (10.50 Rear Axle). Dorman 630-009 is a practical OE-style replacement for rear axle shaft repair on these Ram and Dodge truck applications.
This part cross-references 5086775AB for the same application.
What It Helps Fix
- Broken or damaged rear axle shaft
- Noise or vibration related to axle shaft wear
- Rear-end service after bearing-related shaft damage
- Axle replacement needs on DRW 10.50 rear axle trucks
- Restoration of rear driveline function after shaft failure
Installation Notes and Tips
Verify rear axle configuration, DRW equipment, and the listed position before installation. Confirm spline count, shaft length, and mounting-hole layout against the original part. Inspect related bearings, seals, and axle housing components during service, since this shaft does not include those items.
Quality Assurance
Dorman manufactures this axle shaft as a direct replacement part for the specified Ram and Dodge truck applications. The design follows the original equipment fitment profile for the listed vehicles and rear axle configuration.
