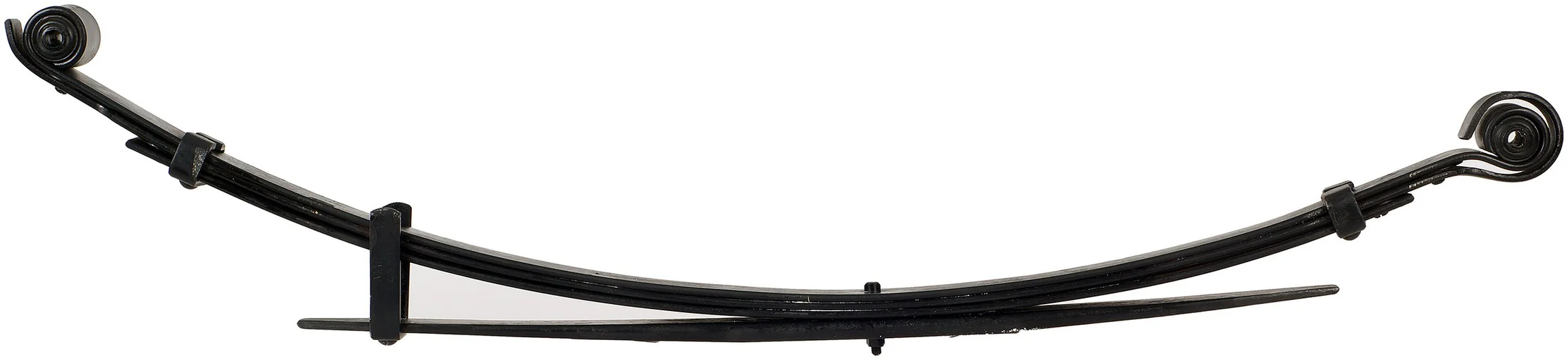

Dorman 90-117 Leaf Spring Assembly - Rear
Dorman 90-117 Rear Leaf Spring Assembly
Dorman 90-117 is a rear leaf spring assembly for select Toyota Pickup applications from 1989-1994. It is built from steel with black bushings and a standard replacement suspension grade to restore rear suspension support, ride height, and load-carrying performance.
Key Features
- Steel leaf spring construction for rear suspension service
- Standard replacement grade for OE-style fit and function
- Leaf quantity: 4 with a 2.375 in. leaf width
- Load rate: 1545
- Up-turned eye attachment at both ends
- Black bushings included
- Rear axle orientation for Toyota Pickup rear suspension
- Part number 90-117 for easy identification
Detailed Description
This Dorman leaf spring assembly is engineered for rear suspension service on 1989-1994 Toyota Pickup models, including 3 Leaf, 1 Leaf, and Two Stage Spring configurations. The steel construction and standard replacement design help maintain proper vehicle support under payload and trailer weight, while the included bushings support consistent suspension movement. If you are searching for a rear leaf spring for Toyota Pickup 1989-1994 or a Dorman 90-117 replacement leaf spring, this part matches the listed application and suspension layout.
This part cross-references Dorman OE Solutions 90-117 and Walker Exhaust 45656 for the same application.
Common Issues This Part Can Address
- Sagging rear ride height
- Reduced payload support
- Excessive rear suspension flex
- Worn or damaged leaf spring assembly
- Uneven rear stance on Toyota Pickup trucks
Installation Notes and Tips
Verify the vehicle’s rear suspension configuration before ordering, since this application is listed for 3 Leaf, 1 Leaf, and Two Stage Spring setups. Confirm the leaf spring dimensions, end attachment type, and axle orientation against the existing part to ensure proper replacement. Bushings are included; mounting hardware is not listed as included.
Quality Assurance
Dorman supplies this leaf spring assembly as a standard replacement part for the specified Toyota Pickup fitment. Use the confirmed vehicle details and suspension measurements to match the correct rear spring before installation.
