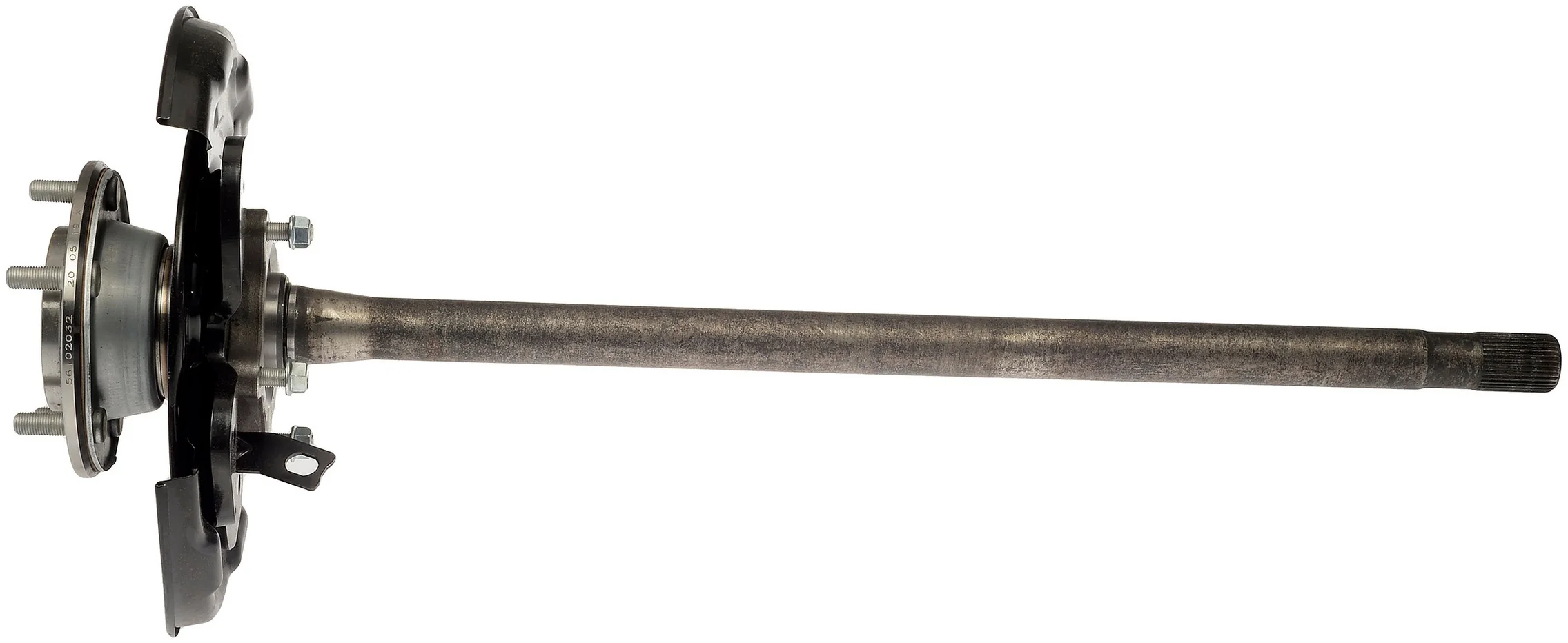

Dorman 926-146 Drive Axle Shaft Assembly - Rear Right
Dorman 926-146 Rear Right Axle Shaft Assembly
Dorman 926-146 is a loaded drive axle shaft assembly for the rear right position on select 2007-2016 Toyota Tundra models. It combines the axle shaft, hub bearing, seal, ABS components, and related hardware interfaces into one preassembled unit to reduce the time and equipment normally needed for axle and bearing service.
Key Features
- Fits 2007-2016 Toyota Tundra, rear right
- Loaded axle shaft assembly with hub bearing already installed
- Steel and carbon steel shaft construction
- 36-spline inboard and 36-spline outboard configuration
- 5 x 150 mm wheel bolt pattern
- ABS tone ring and ABS sensor ring included
- Brake dust shield, backing plate, axle seal, and O-ring included
- Rust-resistant coating for added corrosion protection
- Wheel studs included with 14 mm x 1.5 thread specification
Detailed Description
This Dorman OE FIX axle shaft assembly is built for Toyota Tundra rear axle service where a worn bearing or related axle components would normally require press work and disassembly. By supplying the axle shaft and bearing assembly in a preloaded format, Part Number 926-146 helps streamline replacement on the rear right side while maintaining the original equipment-style layout. The semi-float differential case design, 893 mm shaft length, and integrated ABS components support a direct-service approach for 2007-2016 Toyota Tundra applications. If you are searching for a rear right Toyota Tundra axle shaft assembly, Dorman 926-146 is a focused replacement option for this application. This part cross-references Toyota (e.g., 423110C010) for the same application.
Common Problems This Part Can Address
- Wheel bearing noise from the rear axle area
- Axle shaft wear or damage at the rear right position
- ABS warning concerns related to axle-mounted tone ring components
- Corrosion on axle and bearing service parts
- Brake-side component wear tied to axle removal and reassembly
Installation Notes and Tips
Verify rear right fitment before ordering and confirm the 5 x 150 mm wheel bolt pattern, 36-spline configuration, and 893 mm shaft length match the vehicle. This assembly includes the hub bearing, axle seal, brake dust shield, backing plate, ABS tone ring, and ABS sensor ring, which can reduce separate component handling during service. Professional installation is recommended because axle and bearing replacement requires careful alignment and torque procedures.
Quality Assurance
Dorman OE FIX parts are engineered to address common service challenges with a preassembled design that simplifies axle and bearing replacement. Part Number 926-146 is built with corrosion-resistant coating and application-specific components for 2007-2016 Toyota Tundra rear right service.
Original: $827.07
-65%$827.07
$289.47Dorman 926-146 Drive Axle Shaft Assembly - Rear Right
Dorman 926-146 Rear Right Axle Shaft Assembly
Dorman 926-146 is a loaded drive axle shaft assembly for the rear right position on select 2007-2016 Toyota Tundra models. It combines the axle shaft, hub bearing, seal, ABS components, and related hardware interfaces into one preassembled unit to reduce the time and equipment normally needed for axle and bearing service.
Key Features
- Fits 2007-2016 Toyota Tundra, rear right
- Loaded axle shaft assembly with hub bearing already installed
- Steel and carbon steel shaft construction
- 36-spline inboard and 36-spline outboard configuration
- 5 x 150 mm wheel bolt pattern
- ABS tone ring and ABS sensor ring included
- Brake dust shield, backing plate, axle seal, and O-ring included
- Rust-resistant coating for added corrosion protection
- Wheel studs included with 14 mm x 1.5 thread specification
Detailed Description
This Dorman OE FIX axle shaft assembly is built for Toyota Tundra rear axle service where a worn bearing or related axle components would normally require press work and disassembly. By supplying the axle shaft and bearing assembly in a preloaded format, Part Number 926-146 helps streamline replacement on the rear right side while maintaining the original equipment-style layout. The semi-float differential case design, 893 mm shaft length, and integrated ABS components support a direct-service approach for 2007-2016 Toyota Tundra applications. If you are searching for a rear right Toyota Tundra axle shaft assembly, Dorman 926-146 is a focused replacement option for this application. This part cross-references Toyota (e.g., 423110C010) for the same application.
Common Problems This Part Can Address
- Wheel bearing noise from the rear axle area
- Axle shaft wear or damage at the rear right position
- ABS warning concerns related to axle-mounted tone ring components
- Corrosion on axle and bearing service parts
- Brake-side component wear tied to axle removal and reassembly
Installation Notes and Tips
Verify rear right fitment before ordering and confirm the 5 x 150 mm wheel bolt pattern, 36-spline configuration, and 893 mm shaft length match the vehicle. This assembly includes the hub bearing, axle seal, brake dust shield, backing plate, ABS tone ring, and ABS sensor ring, which can reduce separate component handling during service. Professional installation is recommended because axle and bearing replacement requires careful alignment and torque procedures.
Quality Assurance
Dorman OE FIX parts are engineered to address common service challenges with a preassembled design that simplifies axle and bearing replacement. Part Number 926-146 is built with corrosion-resistant coating and application-specific components for 2007-2016 Toyota Tundra rear right service.
