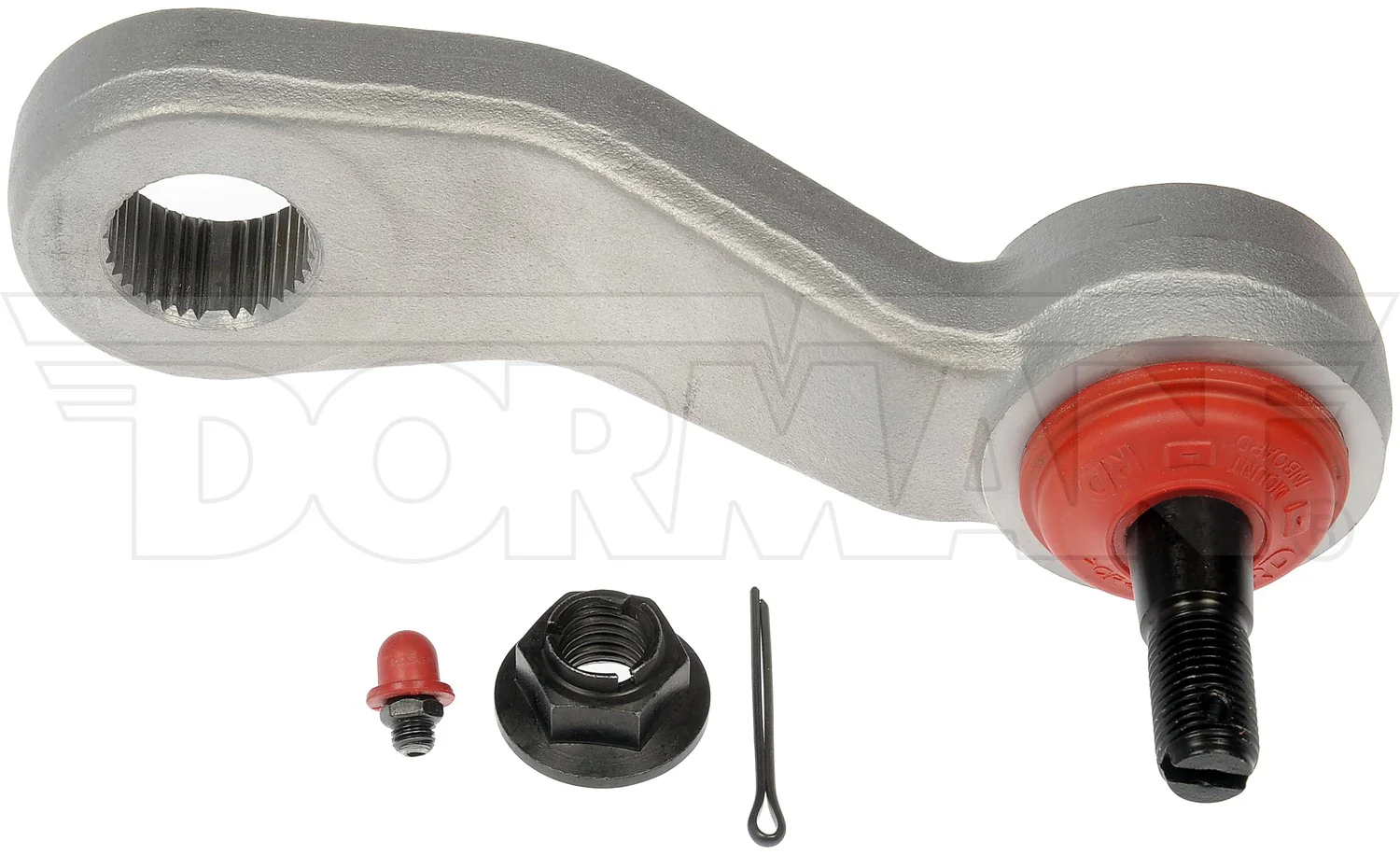

Dorman PA6536RD Steering Pitman Arm
Dorman RD Rugged Duty Pitman Arm
The Dorman RD - Rugged Duty pitman arm PA6536RD is built for steering systems that need stronger load handling and long-term durability. It is a direct-fit steering pitman arm for select Chevrolet, GMC, and Cadillac trucks and SUVs, including Chevrolet Silverado 1500, GMC Sierra 2500 HD, and Cadillac Escalade applications.
Part number PA6536RD combines a hardened ball stud with a polished ball surface, a serviceable integrated bearing, I.C.E. synthetic grease, and coated corrosion resistance for demanding steering service.
Key Features
- Steel construction with a coated gray finish
- 32-spline steering shaft connection
- Hardened ball stud with highly polished ball
- Serviceable integrated bearing for maintenance support
- I.C.E. synthetic grease for smoother operation
- Castle nut, cotter pin, grease fitting, and mounting hardware listed in the package contents
- Fits steering systems that use a 4-groove pitman arm on many applications
Product Details
The RD - Rugged Duty line is Dorman’s heavy-duty steering and chassis offering for vehicles that see higher loads and tougher service conditions. PA6536RD is engineered as a steering pitman arm replacement for select 1999-2008 Chevrolet, GMC, and Cadillac models, including Chevrolet Express 2500, GMC Savana 3500, and Chevrolet Silverado 2500 HD Classic. The design focuses on load absorption, bearing serviceability, and corrosion protection to support consistent steering response.
This part cross-references MOOG Chassis Products K6536 and K6536HD for the same application.
Common Problems This Part Helps Address
- Excessive steering play from a worn pitman arm
- Loose or inconsistent steering response
- Wear at the steering shaft connection
- Corrosion-related deterioration in the steering linkage
- Noise or binding caused by a deteriorated ball stud or bearing surface
Installation Notes and Fitment
- Fits 2003-2008 Chevrolet Express 2500, N/A, w/4 Groove Pitman Arm; RD - Rugged Duty
- Fits 2003-2008 Chevrolet Express 3500, N/A, w/4 Groove Pitman Arm; RD - Rugged Duty
- Fits 2003-2008 GMC Savana 2500, N/A, w/4 Groove Pitman Arm; RD - Rugged Duty
- Fits 2003-2008 GMC Savana 3500, N/A, w/4 Groove Pitman Arm; RD - Rugged Duty
- Fits 2007 Chevrolet Silverado 1500 Classic, N/A, w/4 Groove Pitman Arm; RD - Rugged Duty
- Fits 2007 GMC Sierra 2500 HD Classic, N/A, w/4 Groove Pitman Arm; RD - Rugged Duty
- Fits 2002-2006 Cadillac Escalade, N/A, RD - Rugged Duty
- Fits 2001-2006 Chevrolet Silverado 1500, N/A, w/4 Groove Pitman Arm; RD - Rugged Duty
- Fits 2000-2006 Chevrolet Tahoe, N/A, RD - Rugged Duty
- Fits 2001-2006 GMC Sierra 3500, N/A, w/4 Groove Pitman Arm; RD - Rugged Duty
Verify spline count, steering shaft diameter, and center link attachment dimensions before installation. This part is listed with a 32-spline shaft, a 29.78 steering shaft diameter, and a 14 mm center link end attachment diameter with 1.5 mm pitch. Use the vehicle’s steering configuration and pitman arm groove count to confirm the correct application before service.
Quality Assurance
Dorman RD - Rugged Duty parts are built for demanding steering applications with corrosion-resistant finishing and serviceable components. PA6536RD is supported by Dorman’s rugged-duty product line engineering for heavy-load steering service.
